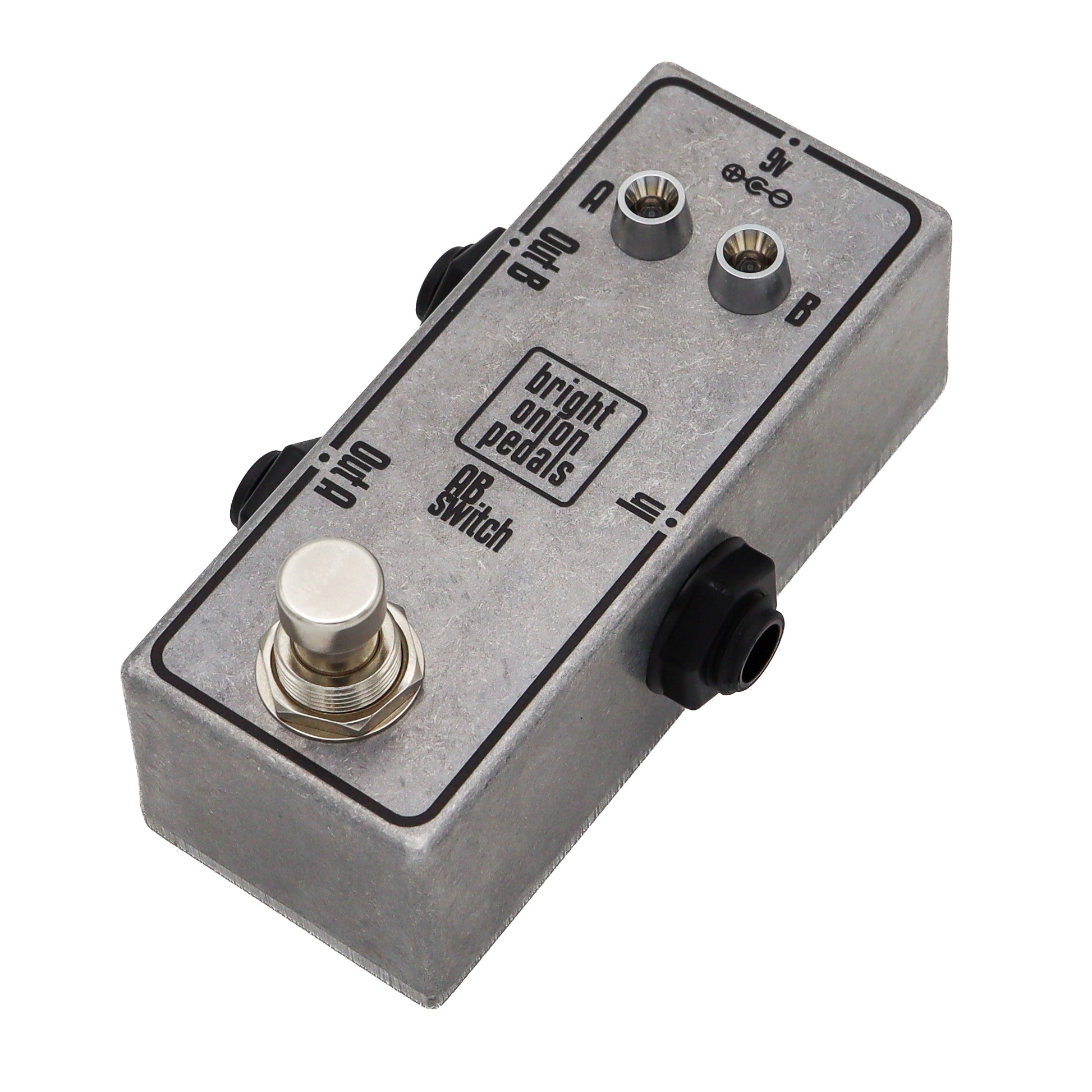

AB Output Switch

This is an AB switch which lets you have the input routed to one of the A or B outputs.

This is a smart little pedal in a small package.

The pedal is totally passive. If you need to power the status LEDs the pedal has a Boss style 2.1mm 9v DC socket.

The pedal is built with:

• Aluminium enclosure
• Neutrik plug sockets
• 3PDT heavy duty footswitch
• Point to point wiring
• Status LEDs
• 2.1mm centre negative 9v DC socket

Enclosure dimensions:

92x38x31mm
