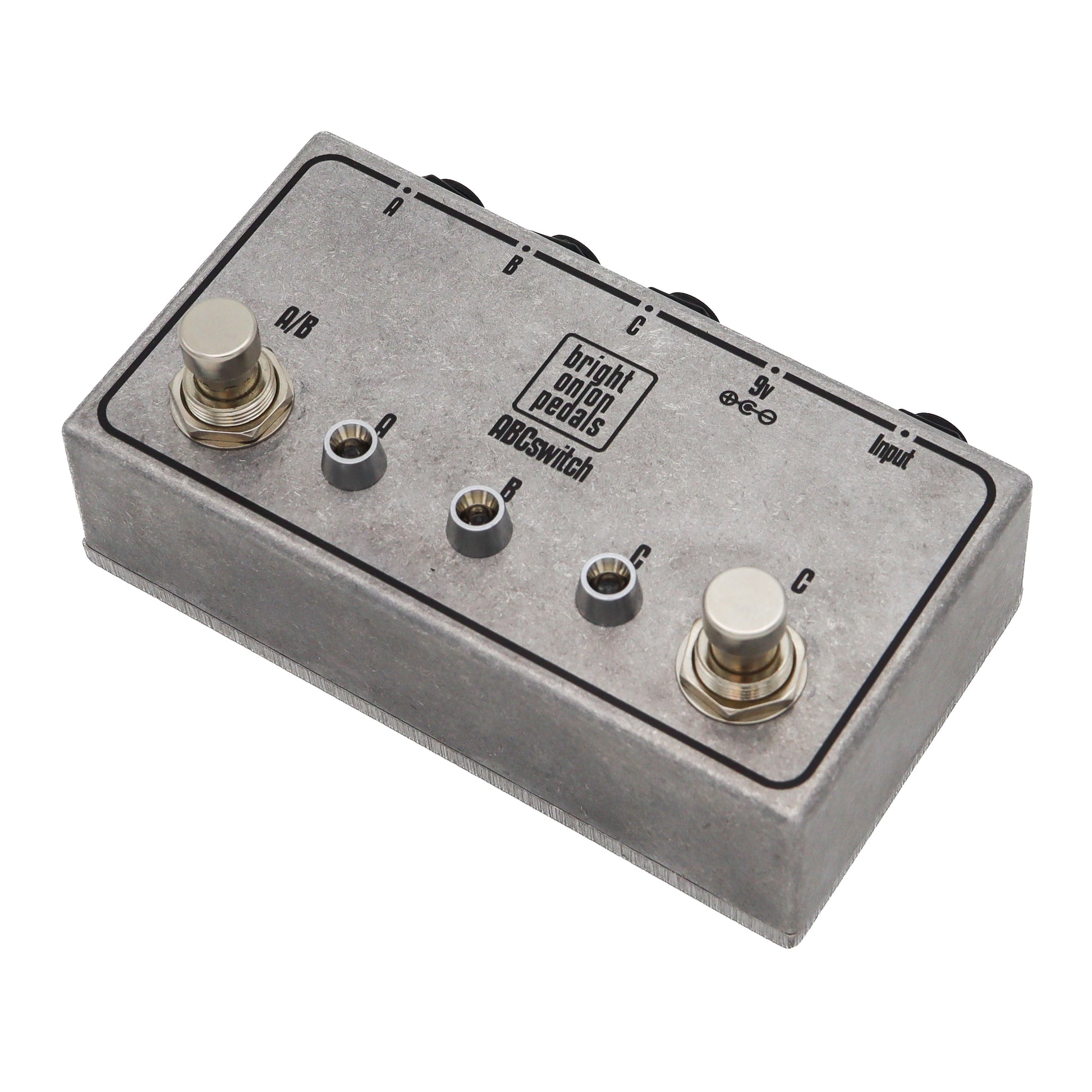

ABC Switch with Three Outputs

This is an ABC switch which lets you have one of three outputs routing the signal from the input. Great when you have three amps that you use with the same guitar, no more cable switching!

This is a smart little pedal in a small package. The first switch selects either the A or B output, and the second switch activates C overriding whichever output is selected on the first switch.

The pedal is totally passive. If you need to power the LEDs the pedal has a Boss style 2.1mm 9v DC socket.

• Aluminium enclosure
• Neutrik plug sockets
• 3PDT heavy duty footswitches
• Point to point wiring
• LEDs
• 2.1mm centre negative 9v DC socket

Enclosure dimensions:

110x60x31mm
