Bright Onion Pedals

ABCDE Switch with Five Outputs

ABCDE Switch with Five Outputs

£74.95 GBP
£74.95 GBP
Sale Sold out

BUILD TIMES & SHIPPING

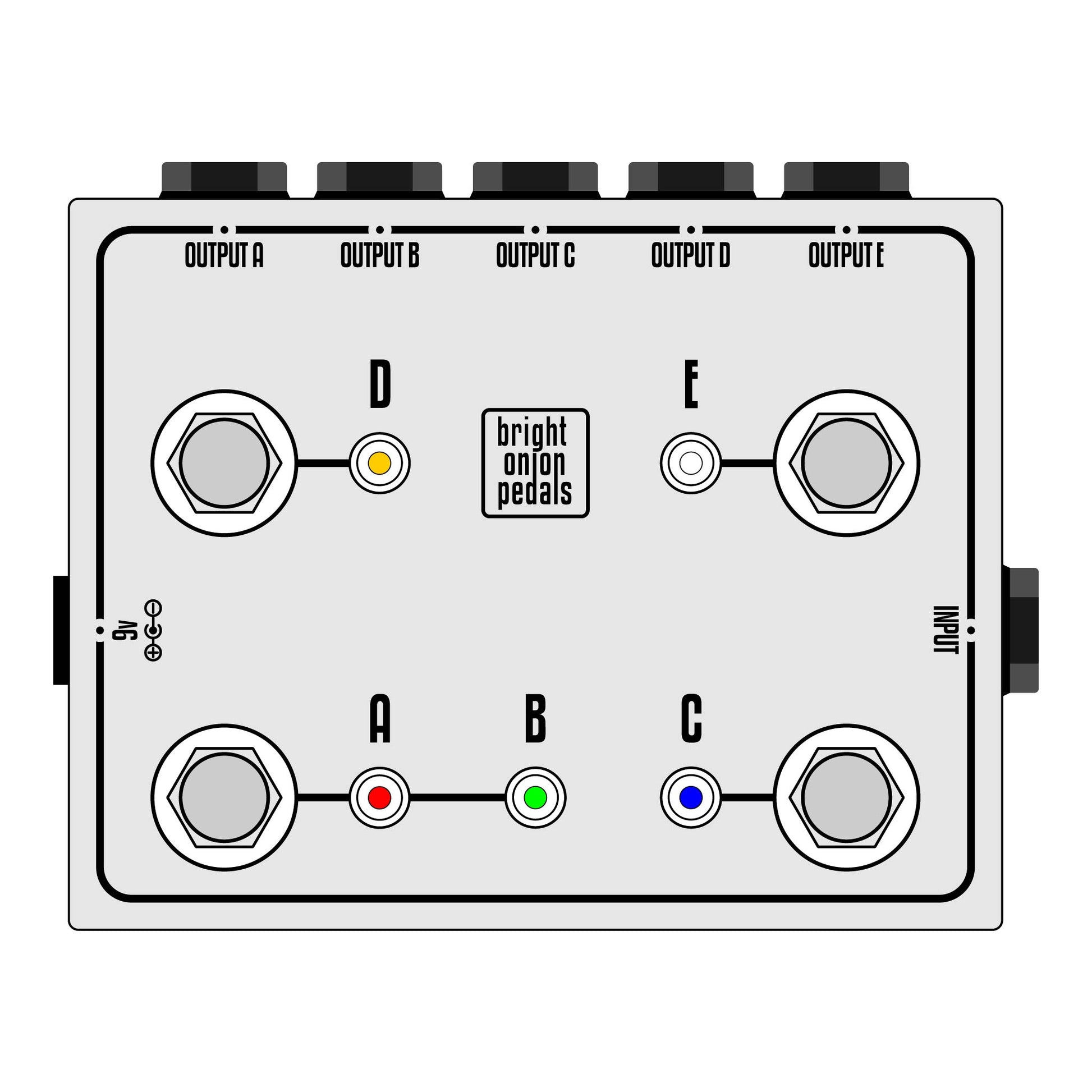

This is an ABCDE switch which lets you have the input signal going to one of five outputs.  Great when you have five amps that you use with the same guitar, no more cable switching!

The first switch selects either the A or B output, the second switch activates C overriding whichever output is selected on the first switch, the third switch activates D overriding whichever output is selected on the first two switches, and the fourth switch activates E overriding whichever output is selected on the other three switches.

The pedal is totally passive. If you need to power the LEDs the pedal has a Boss style 2.1mm 9v DC socket.

The pedal is built with:

  • Aluminium enclosure
  • Neutrik plug sockets
  • 3PDT heavy duty footswitches
  • Point to point wiring
  • LEDs
  • 2.1mm centre negative 9v DC socket

Enclosure dimensions:

120x95x34mm
