Amp FX Loop AB Switch

This is a FX loop AB switch that enables you to switch your pedals between two amps’ FX loops, as well as the inputs to the front of the amps.

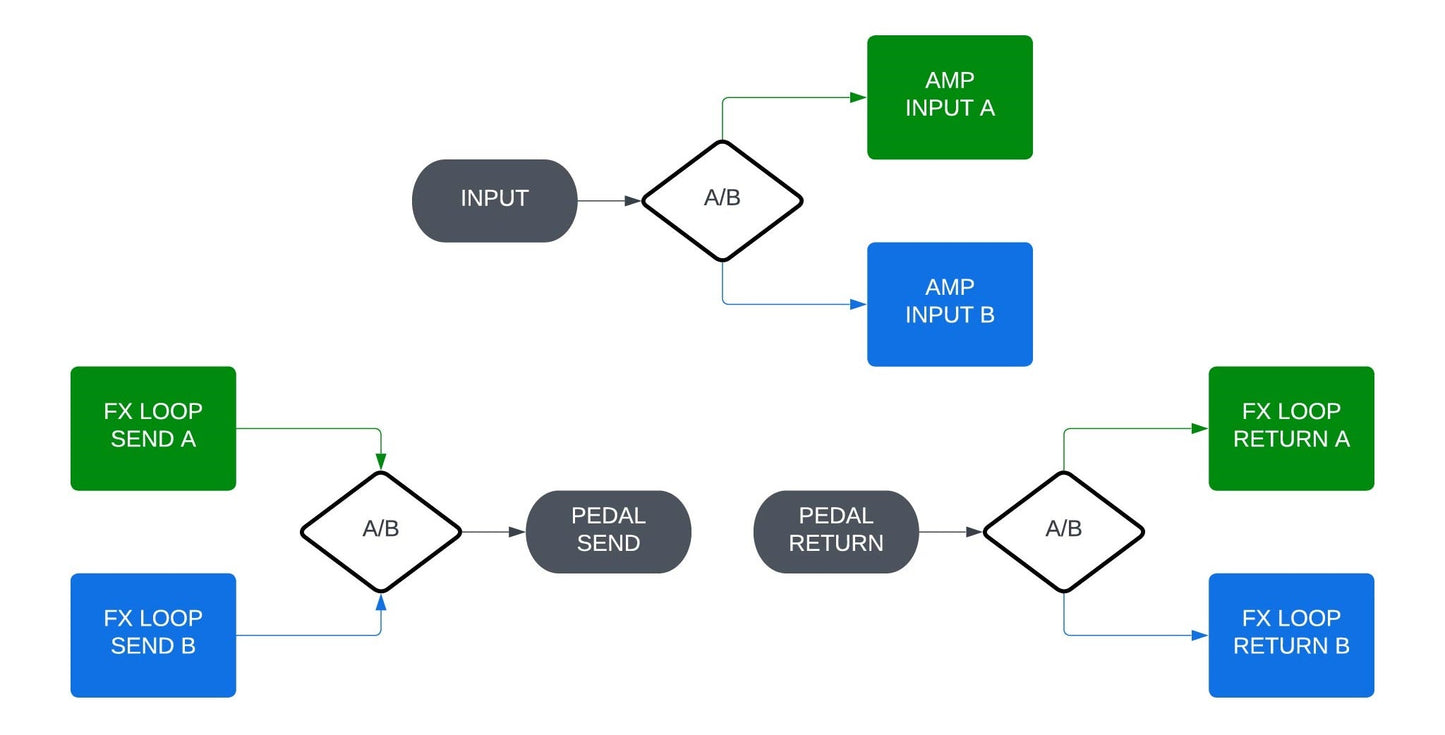

Your preamp effect pedals go into the AB pedal’s input which is routed to the Amp Input A or B sockets.  Your post effect pedals go in the Pedal Send and Return sockets, and these are routed to either the A or B FX Loop Send and Return sockets.

Only one A or B path is active at a time, it is not possible for both A and B to be active together.

The pedal is built with:

• Aluminium enclosure
• Neutrik plug sockets
• Heavy duty footswitch
• 2.1mm centre negative 9v DC socket (90mA)

Enclosure dimensions:

110x60x42mm
