Cube 40XL/80XL Footswitch

This pedal is designed to be used with the Roland Cube 40XL and 80XL amps, it is not compatible with the Cube 80X, 80GX or 40GX.

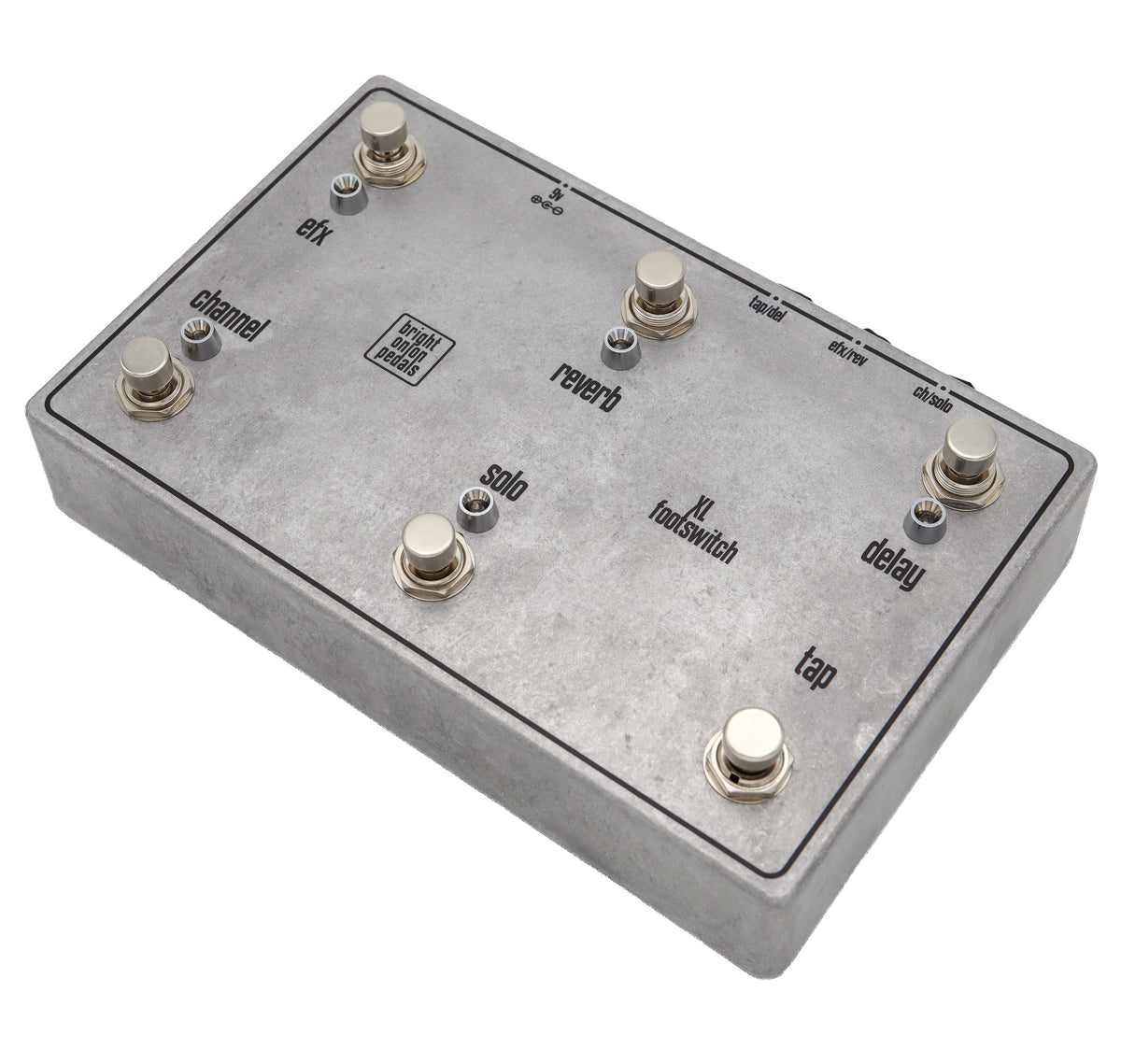

The pedal is based on having five of the Boss FS-5Ls (set your amp to latching) and one FS-5U footswitch. The switches control the amp's EFX, Reverb, Delay/Mute, Channel, Solo and Tap functions.

The front switches are set at a lower height to the back switches in order for them not to interfere with each other.

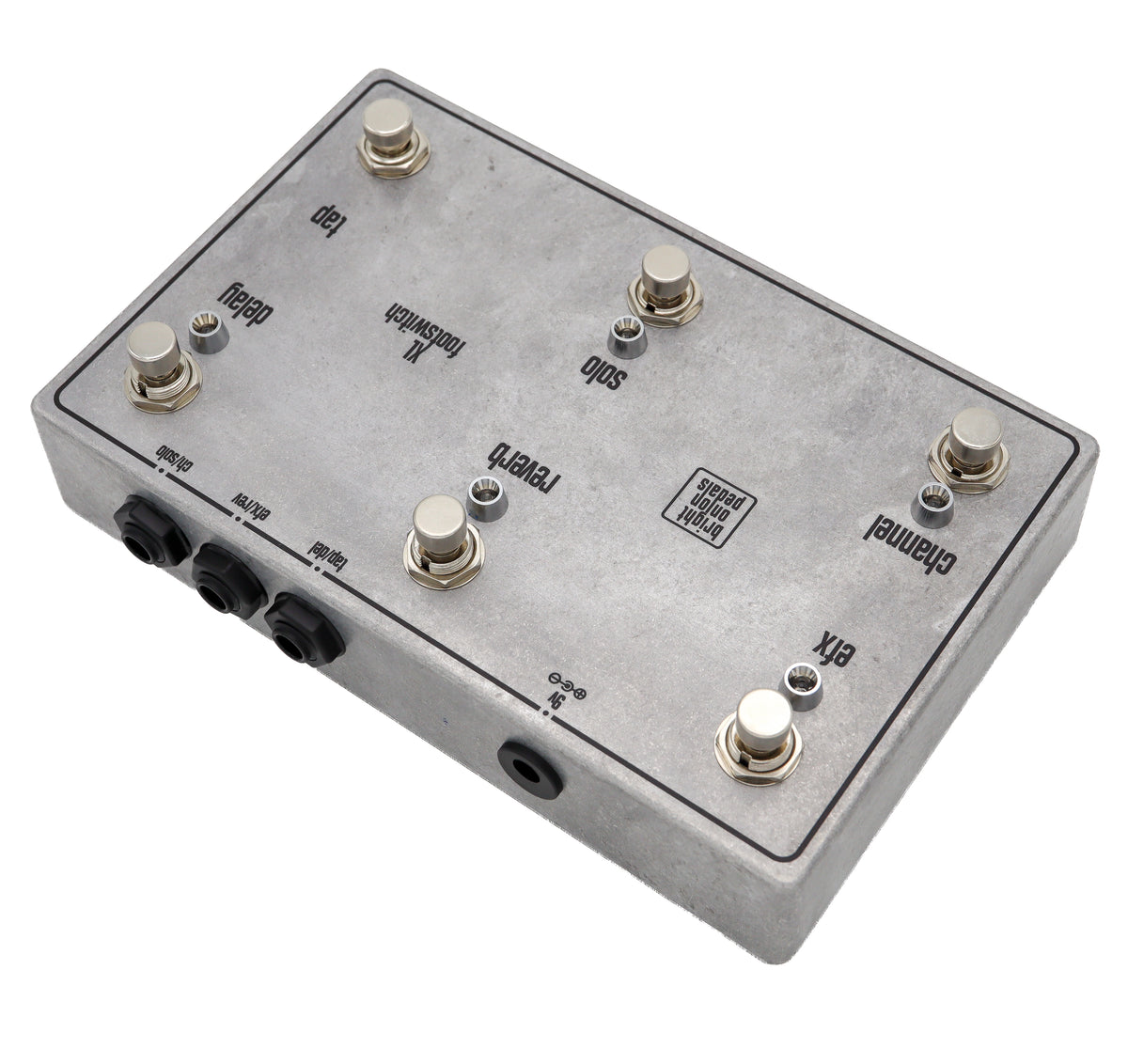

The pedal is made with three stereo sockets to enable you to connect it to your Cube 80XL using three stereo 1/4" cables (not supplied).

The pedal is totally passive so no power required, however if you would like to power the LEDs you can add a battery to the internal clip or use the Boss style 2.1mm 9v DC socket.

The pedal is built with:

• Aluminium enclosure
• Neutrik plug sockets (if selected)
• DPDT heavy duty footswitches
• Point to point wiring
• LEDs
• 2.1mm centre negative 9v DC socket and internal battery holder


Enclosure dimensions:

188x118x38mm
