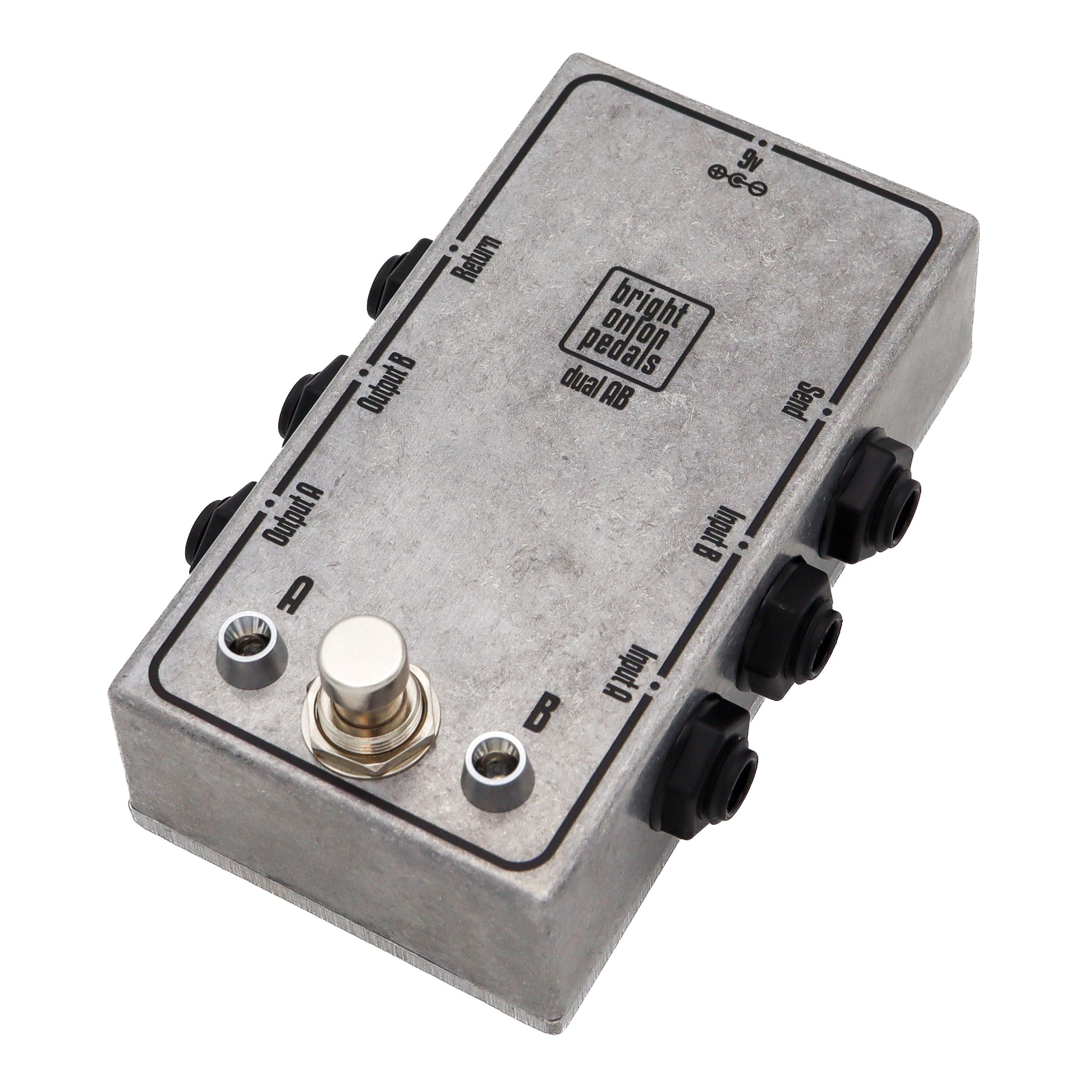

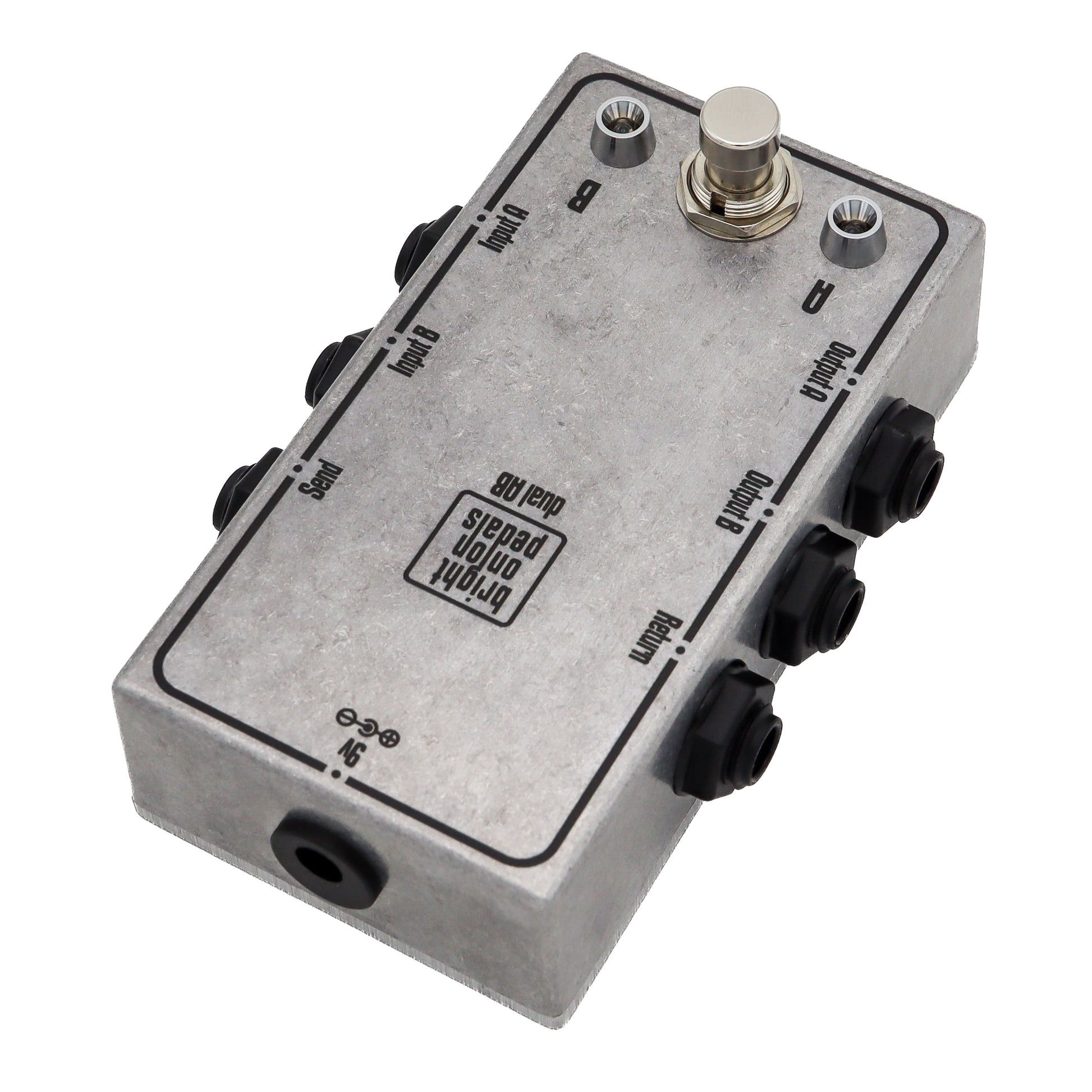

Dual AB Switch v2

This is a dual AB switch that enables you to select between two inputs and outputs that are routed through the Send and Return sockets, so a pedalboard can be shared for two setups, for example electric and acoustic.

The pedal is totally passive. If you need to power the status LEDs the pedal has a Boss style 2.1mm 9v DC socket.

• Aluminium enclosure
• Neutrik plug sockets
• 4PDT heavy duty footswitches
• Point to point wiring
• Status LEDs
• 2.1mm centre negative 9v DC socket

Enclosure dimensions:

110x60x31mm
