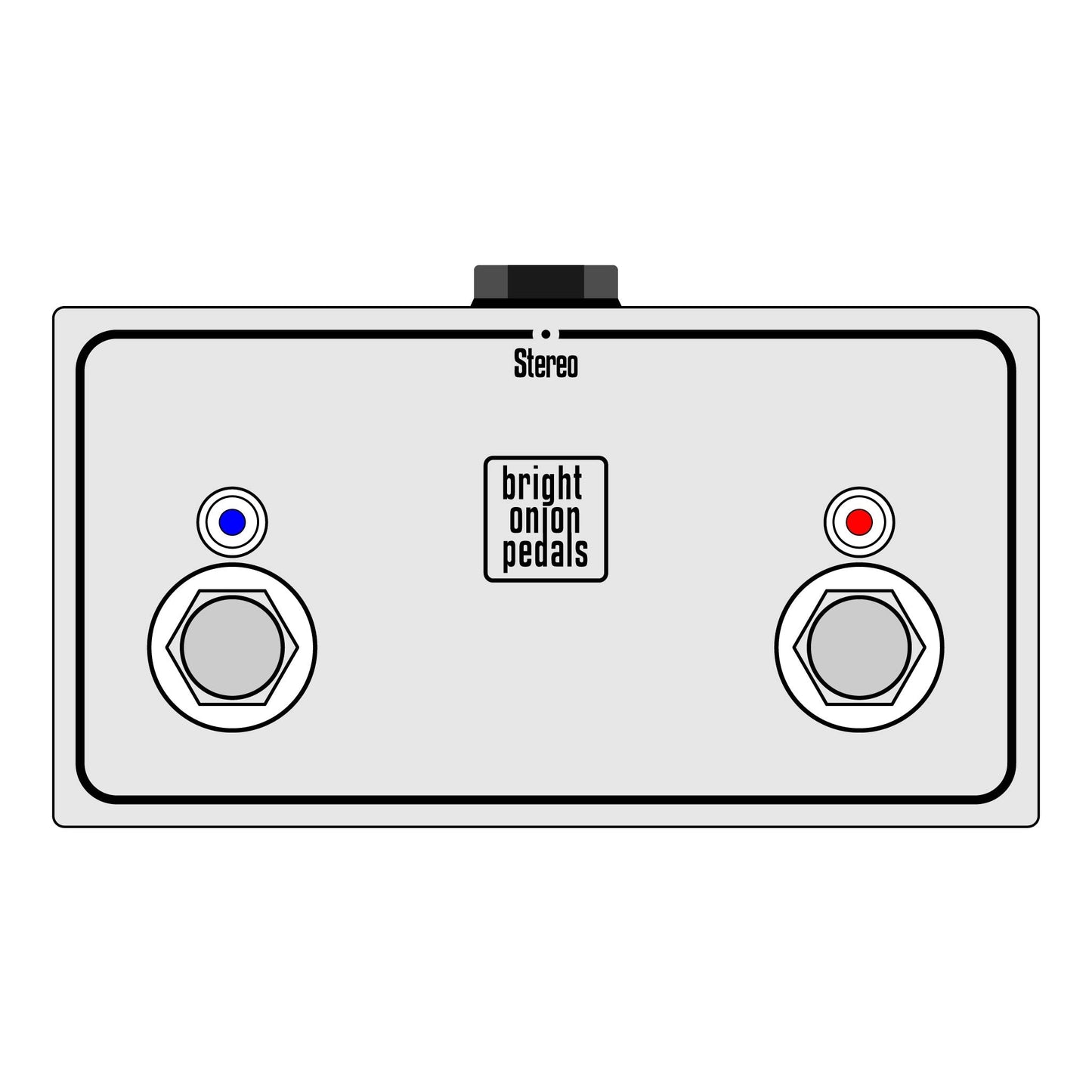

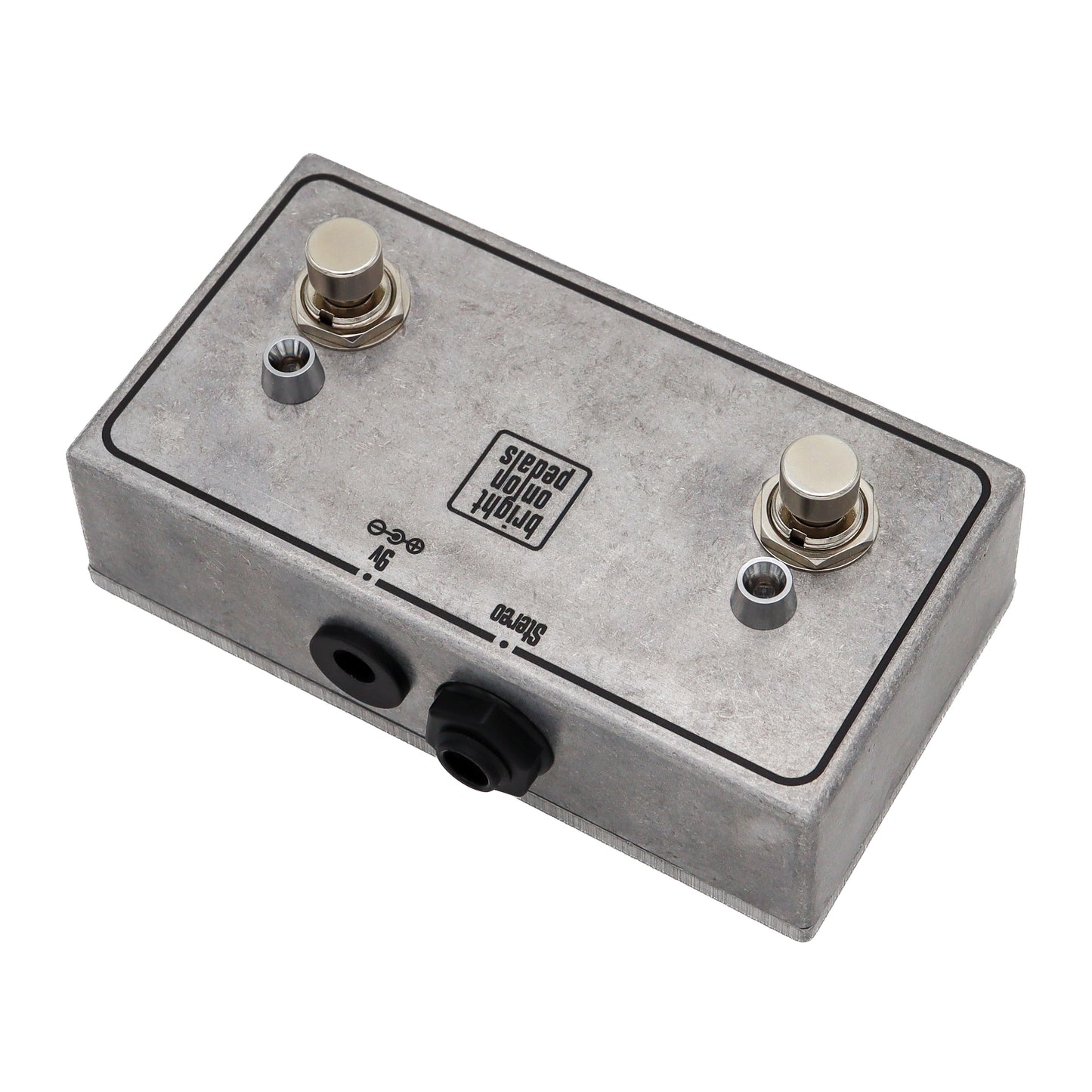

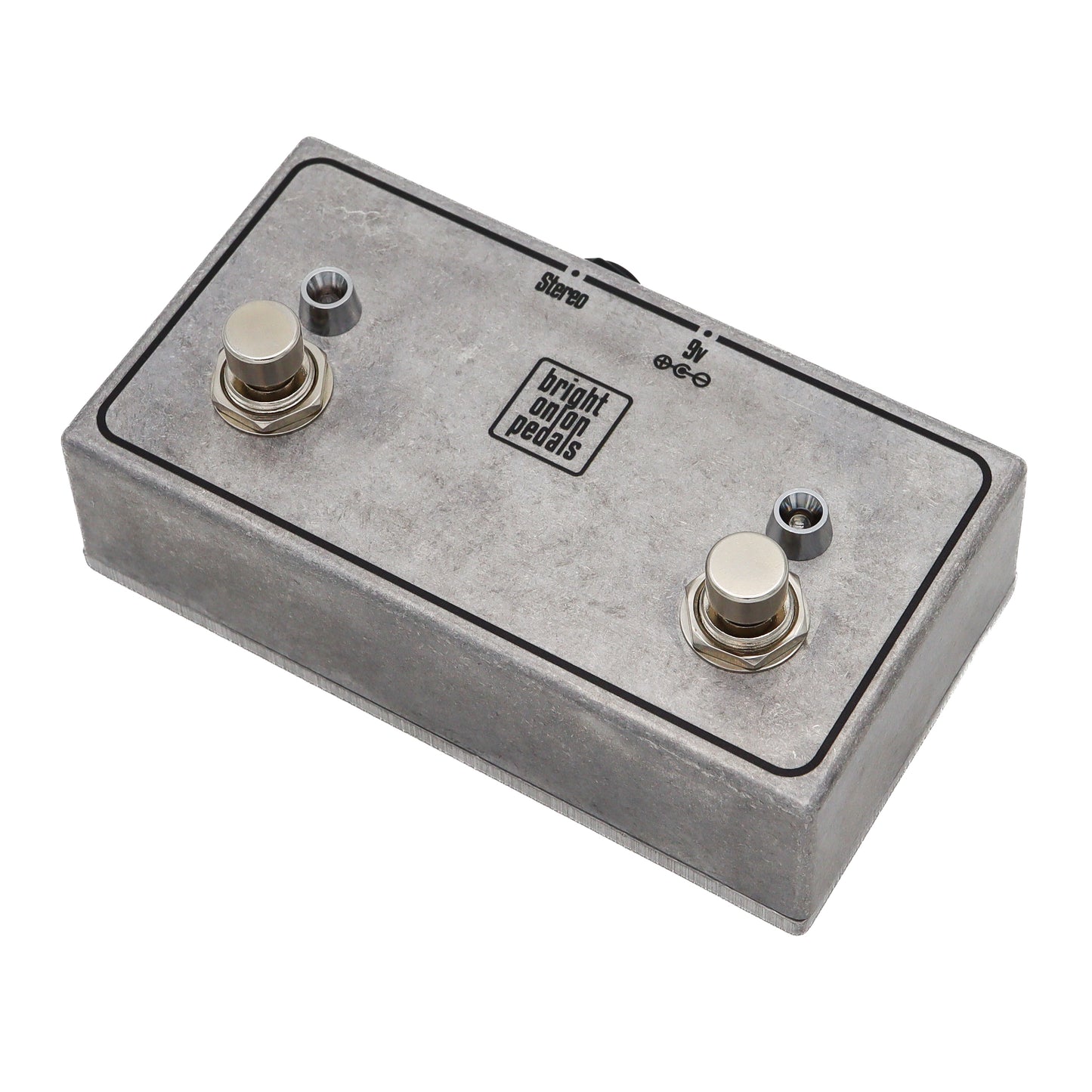

Dual Latching Footswitch with LEDs

This pedal is a dual latching footswitch for switching channels/effects on an amp that takes a dual latching footswitch with a stereo 1/4" TRS cable.

Each footswitch has an internal slider switch to let you set the LED state to the correct state for the function it's footswitch is switching.

The left switch is wired to the tip connection of the stereo TRS output, the right switch is wired to the ring.

The LEDs are powered by an internal 9v battery (not included) and/or a 2.1mm 9v DC socket. Select the option you would prefer.

Just add a stereo patch cable and you are ready to go.

The pedal is built with:

• Aluminium enclosure
• Neutrik plug socket
• DPDT heavy duty footswitches
• Point to point wiring
• LEDs
• Battery clip and/or 2.1mm centre negative 9v DC socket


Enclosure dimensions:

110x60x31mm
