EBS Solder-Free Flat Patch Kit - 10

Bulk discounts on EBS cables - buy 2 or more for 5% off!

EBS believe that the tools for your musical creativity and performance should be clutter-less and easily customizable to fit you personal preference. Long gone are the time when cables and adapters set the limit for how you could design your pedal board.

With their ground-breaking Solder-free Flat Patch Cable Kit you can easily create your own cables to fit your needs with failproof do-it-yourself assembling.

The low profile contact housing and flat cable matches our other assortment of high-quality space-saving pedalboard accessories.

The unique design solves common problems with connection reliability thanks to its dual anchor screws and its flat cable design. The two anchor screws are specially designed to create a secure fastening in the exterior coating of the elliptical flat cable. This helps prevent slipping and provides a reliable audio signal and a neat pedal board.

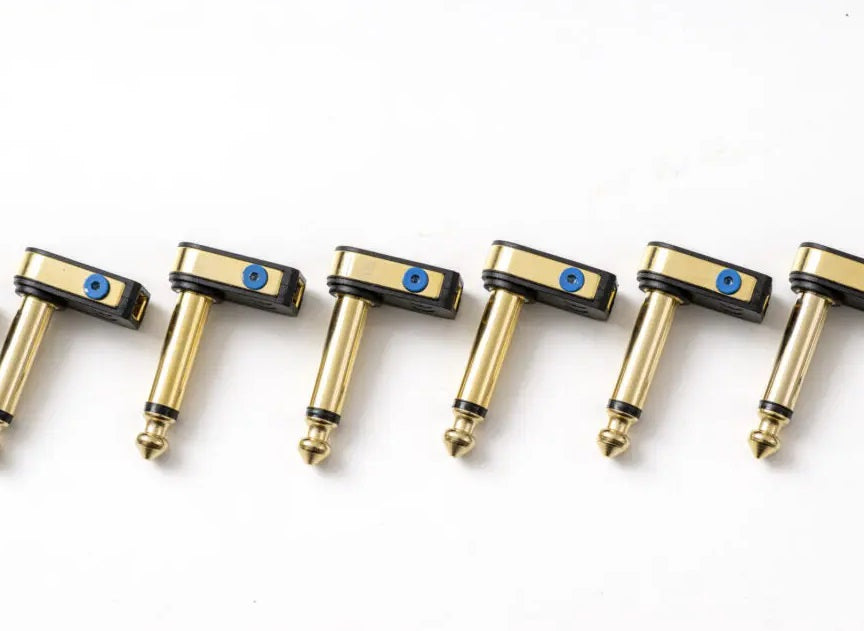

The SOLDER-FREE FLAT PATCH CABLE KIT includes

•     10 contact housings (depending on kit size)
•     2,5 m (8.2 ft) high quality flat cable (depending on kit size)
•     Cutter Tool
•     Allen Key

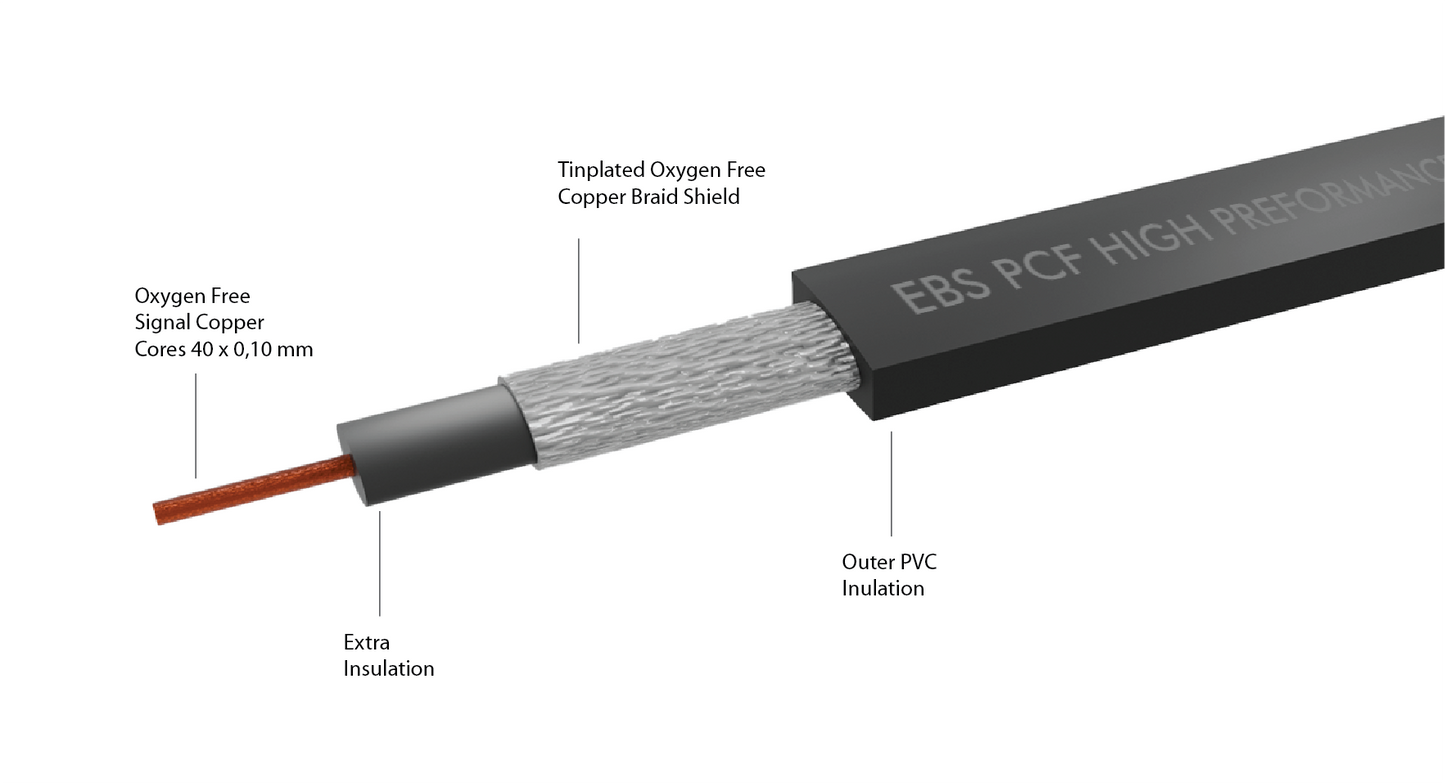

Specs

•     Conductor: Flexible copper conductor low voltage audio signal system
•     Operating Temperature: -15ºC to +70°C
•     Outer Insulation: PVC
•     Signal Copper Cores: 40 x 0,1mm
•     Signal Insulation: PE (polyethylene)
•     Dimensions: 6 x 3 mm (rectangular cable)
•     23,4 x 11,4 x 7,25 mm (contact house)
•     Connectors: ¼" 90 degrees angled audio plug
