Bright Onion Pedals

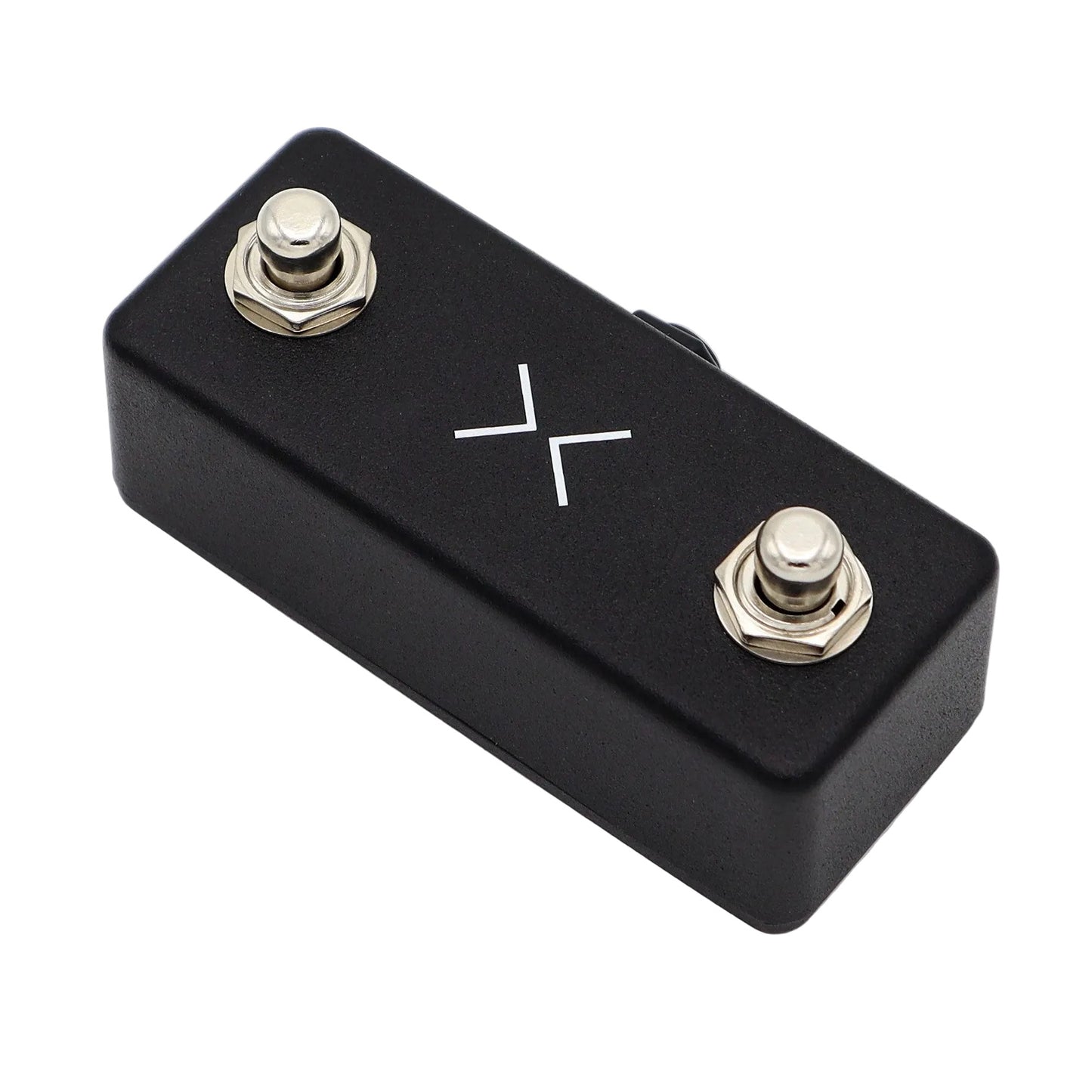

HXFS Stomp Footswitch

HXFS Stomp Footswitch

Regular price £29.95 GBP
Regular price Sale price £29.95 GBP
Sale Sold out

BUILD TIMES & SHIPPING

Here is our HXFS, our special take on a Mini Dual Momentary Footswitch for the Line 6 HX Stomp.

How to set up your HX Stomp to work with the HXFS Stomp Footswitch.

Please note you need a 1/4” stereo TRS cable to connect them, a regular mono patch cable will result in only one switch working.

1. Press both Page buttons at the same time and hit Page > once to see the Global Settings menu. Open it with the corresponding button.

2. Use the main dial to head over to Preferences.

3. Ensure that the Footswitch Mode for both EXP/FS Tip and EXP/FS Ring are set to FS4 and FS5, respectively.

4. Check that Tip Polarity and Ring Polarity are set to Normal.

5. Use the main dial to head over to Footswitches.

6. Here, you can choose the functions that FS4 and FS5 perform, including Tuner, Bank Up/Down, Snapshot Up/Down, Preset Up/Down, FS Mode Up/Down, All Bypass, Toggle EXP, and Stomp 4/5.

7. Press View and Action at the same time to save the settings.

The Stomp is set to work with normally open switches by default so that is what we have gone with. They are heavy duty soft touch switches so no mechanical clicks to worry about.

If you need a cable for the footswitch then grab a stereo TRS one from our cables section.

The pedal is built with:

  • Black aluminium enclosure
  • Neutrik plug socket
  • Heavy duty soft touch footswitches
  • Point to point wiring

Enclosure dimensions:

92x38x31mm

View full details

GPSR Information

Name: Bright Onion Pedals Limited

Address: 86 Downs Valley Road, Brighton, BN2 6RF, UK

Email: james@brightonion.co.uk

Website: https://brightonion.co.uk/

European Manufacturer: Yes

Name: Easy Access System Europe

Address: Mustamäe tee 50, 10621 Tallinn, Estonia

Email: gpsr.requests@easproject.com

Website: easproject.com

Name: Bright Onion Pedals Limited

Address: 86 Downs Valley Road, Brighton, BN2 6RF, UK

Email: james@brightonion.co.uk

Website: https://brightonion.co.uk/

Age Restrictions: Not suitable for small children without adult supervision.

Warnings
  • If the pedal is powered, use only a 9v DC Centre Negative 2.1mm barrel power supply.
  • If the pedal has a transformer isolated output, only use it with equipment that is properly grounded with a 3-prong AC plug.
  • Do not expose to moisture, liquids, or excessive humidity.
  • Disconnect power when not in use for extended periods.
  • Do not use damaged power cables or adapters.
  • Use appropriate hearing protection when using with amplified equipment.
  • Keep away from heat sources and direct sunlight.
  • Do not drop or subject to impact.
  • Place on stable, flat surfaces only.
  • For indoor use only.
  • Do not use in wet locations or near water.
  • Clean only with dry cloth - do not use solvents or cleaning fluids.
  • No user maintenance required - refer servicing to Bright Onion Pedals Limited.
Disposal Instructions

Our products contain no batteries or lead. Return the product to Bright Onion Pedals Limited for disposal or use the standard disposal for electrical equipment recommended in your country.
