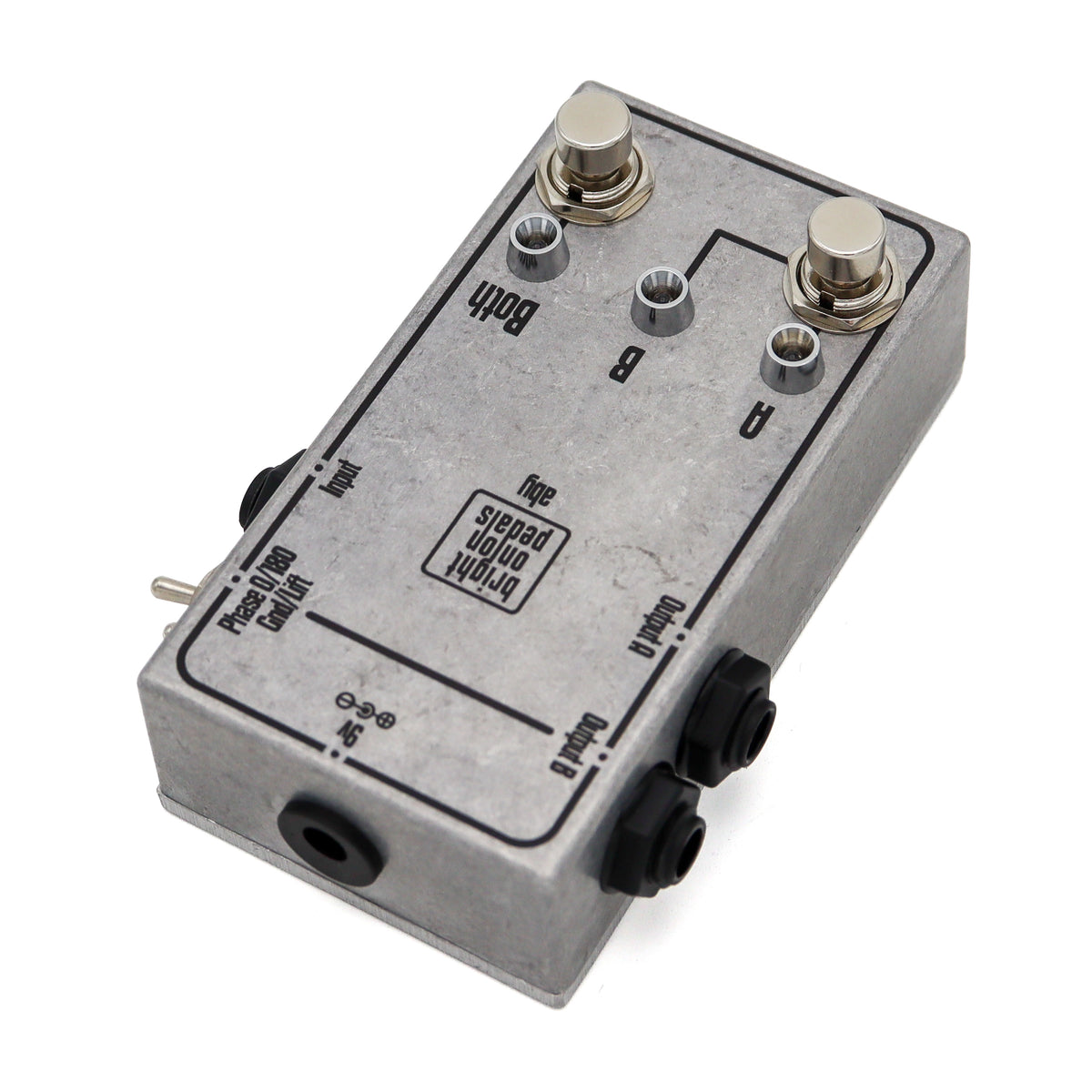

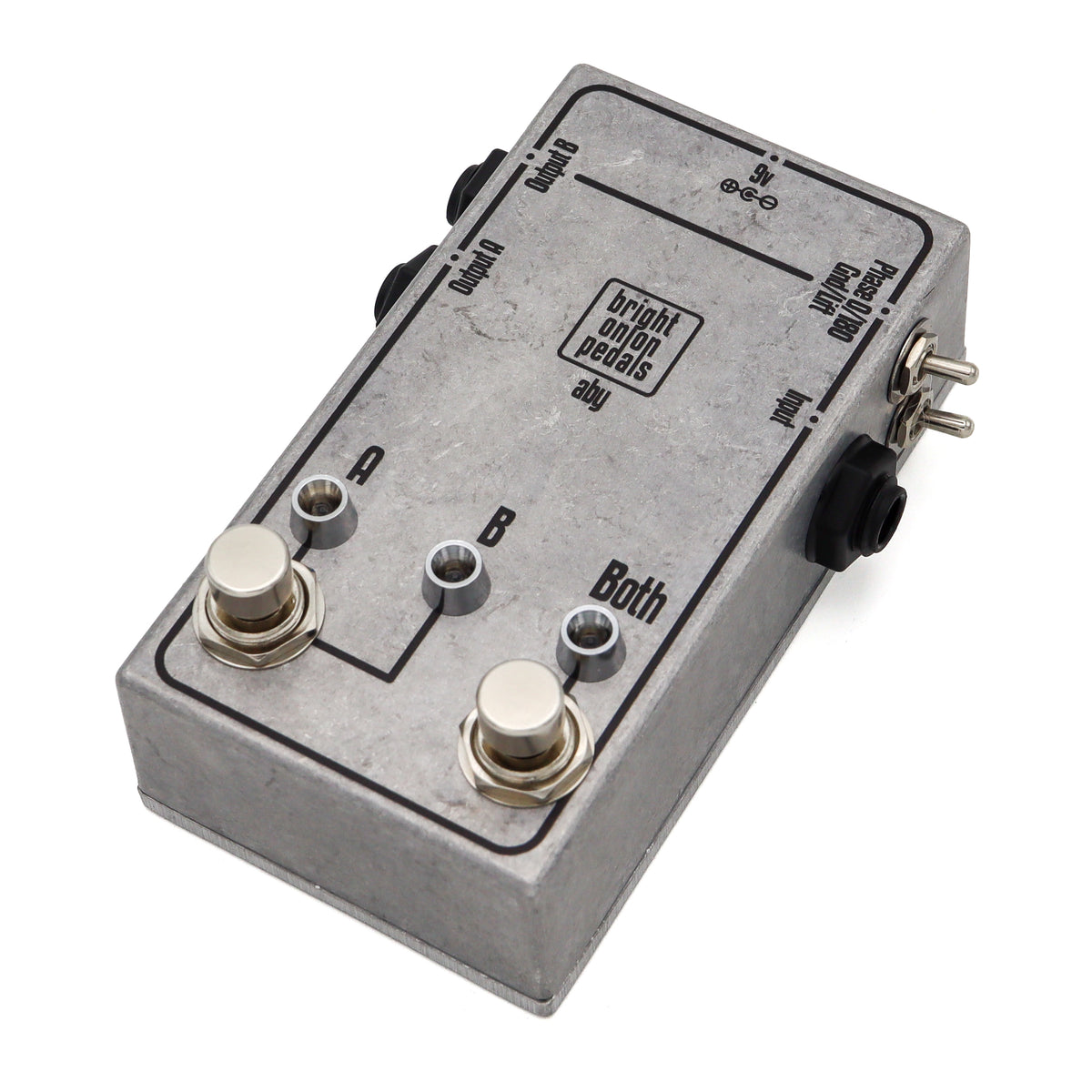

Active ABY Pedal with Isolated Second Output v2

This is an ABY switch which lets you send your input to either the A or B outputs, or to both simultaneously.

This ABY pedal comes with the added benefits of being active and having the B output going via an isolation transformer. With the pedal being active means that there will be no signal loss when the input signal is split to both outputs, and having output B going via an isolation transformer means there will be no ground hum issues.

There are two toggle switches on the side of the pedal, one that reverses the phase of output B in case there are any phase issues when using both amps, plus a ground lift so everything is covered!

The pedal is built with:

• Aluminium enclosure
• Neutrik plug sockets
• DPDT heavy duty footswitches
• Status LEDs
• 2.1mm centre negative 9v DC socket (20mA)
• 1M input impedance and 1K output impedance

Enclosure dimensions:

110x60x31mm
