Active Splitter with Isolated Second Output

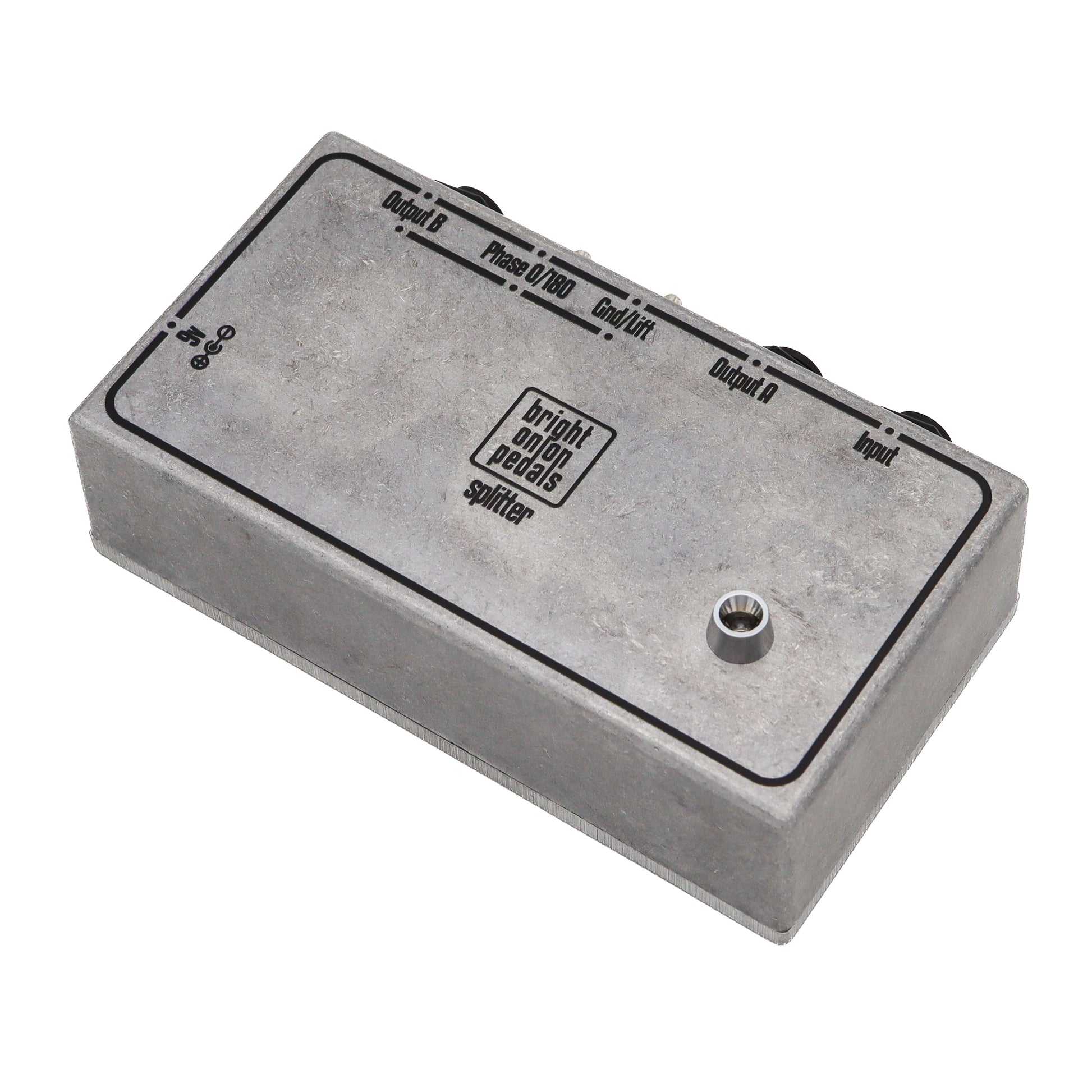

This is an active splitter with the same circuit as our popular ABY pedal.

The pedal splits your signal to both outputs, the second of which goes via an isolation transformer. With the pedal being active means that there will be no signal loss when the input signal is split to both outputs, and having output B going via an isolation transformer means there will be no ground hum issues.

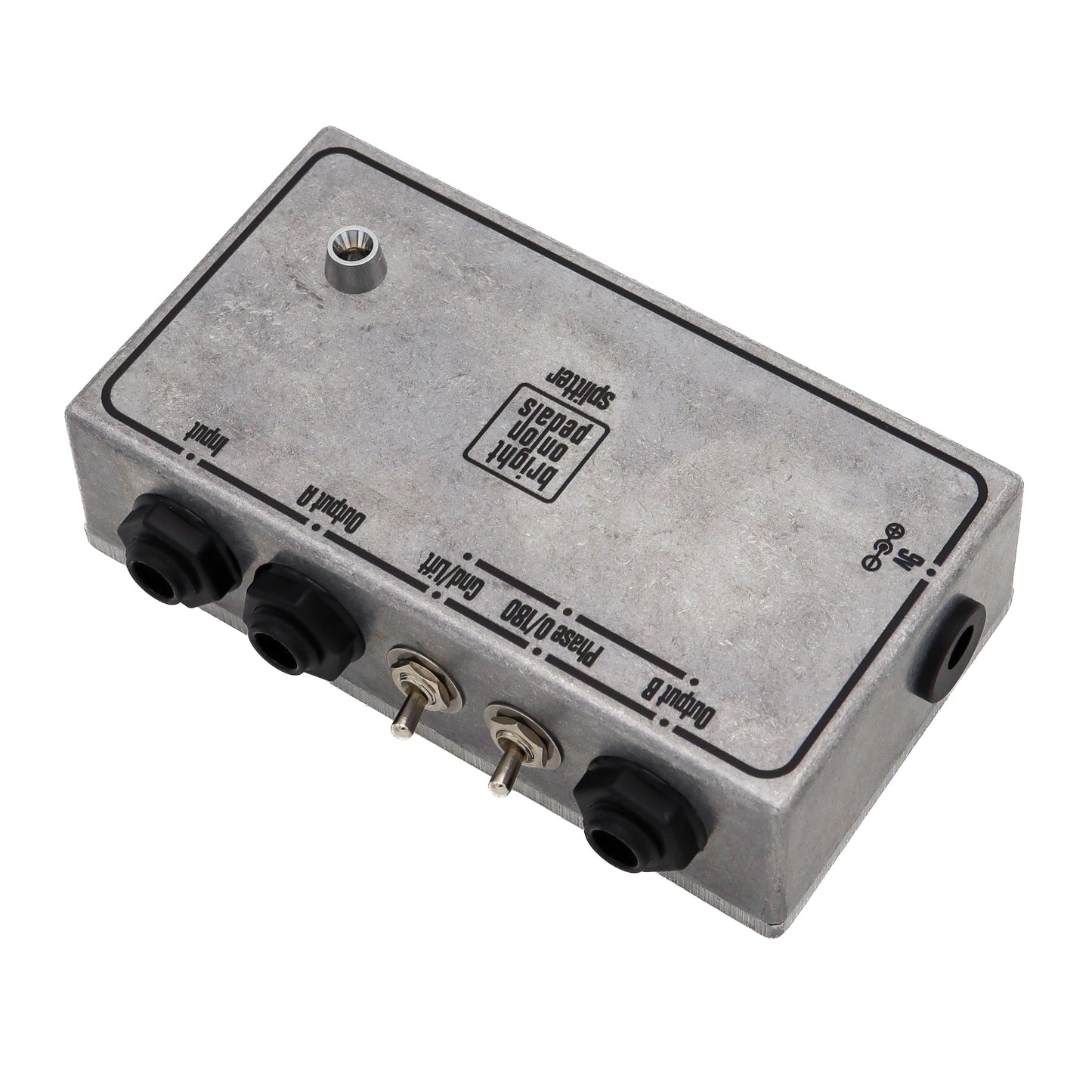

There are two toggle switches on the rear of the pedal, one that reverses the phase of output B incase there are any phase issues when using both amps, plus a ground lift so everything is covered!

• Aluminium enclosure
• Neutrik plug sockets
• Status LED
• 2.1mm centre negative 9v DC socket (20mA)
• 1M input impedance and 1K output impedance

Enclosure dimensions:

110x60x31mm
