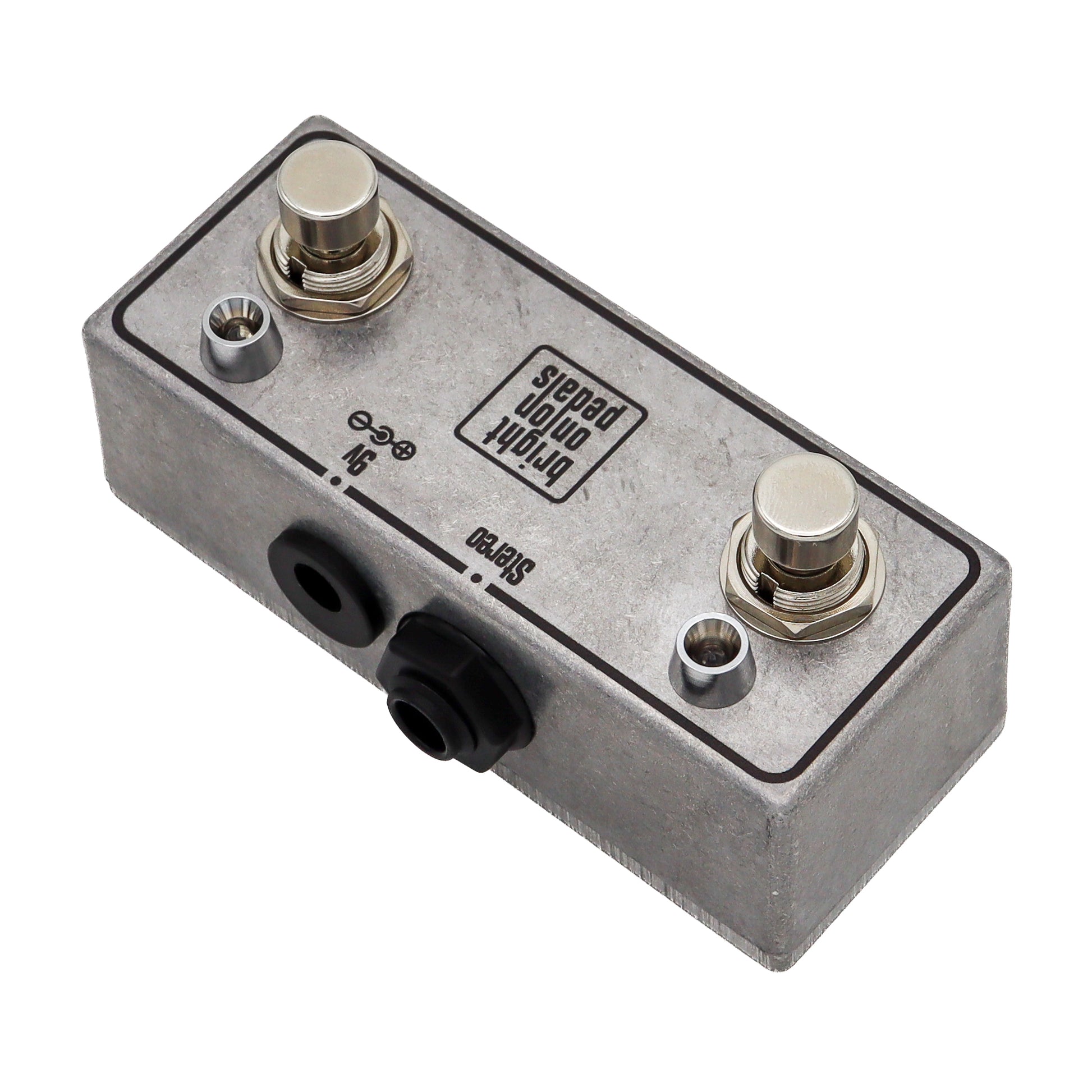

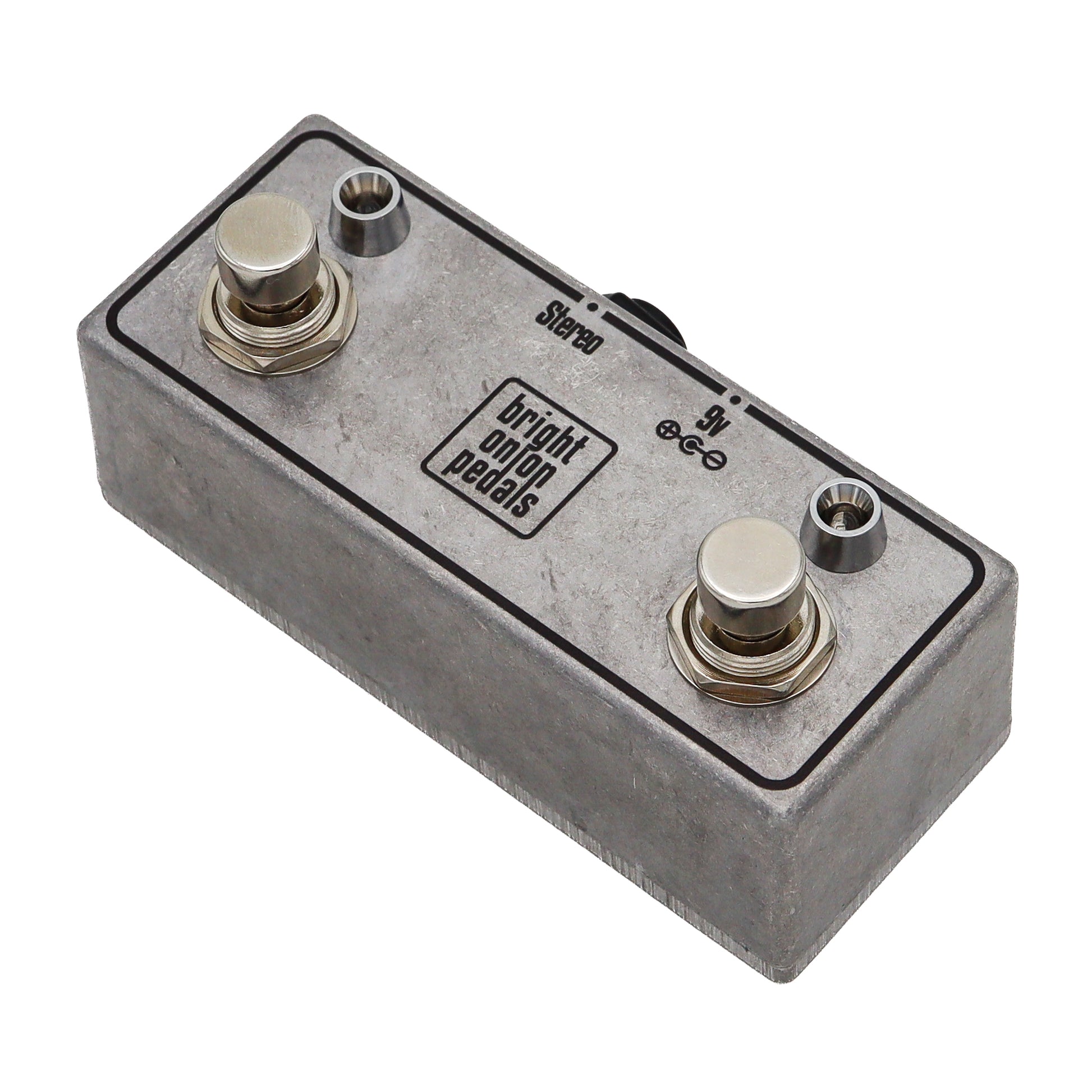

Mini Dual Latching Footswitch with LEDs

This pedal is a dual latching footswitch for switching channels/effects on an amp that takes a dual latching footswitch with a stereo 1/4" TRS cable.

Each footswitch has an internal slider switch to let you set the LED state to the correct state for the function it's footswitch is switching.

The left switch is wired to the tip connection of the stereo TRS output, the right switch is wired to the ring.

The pedal is passive so will work without power, however the status LEDs are powered via a 2.1mm 9v DC socket.

Just add a stereo cable and you are ready to go.

The pedal is built with:

• Aluminium enclosure
• Neutrik plug socket
• DPDT heavy duty footswitches
• Point to point wiring
• LEDs
• 2.1mm centre negative 9v DC socket

Enclosure dimensions:

92x38x31mm
