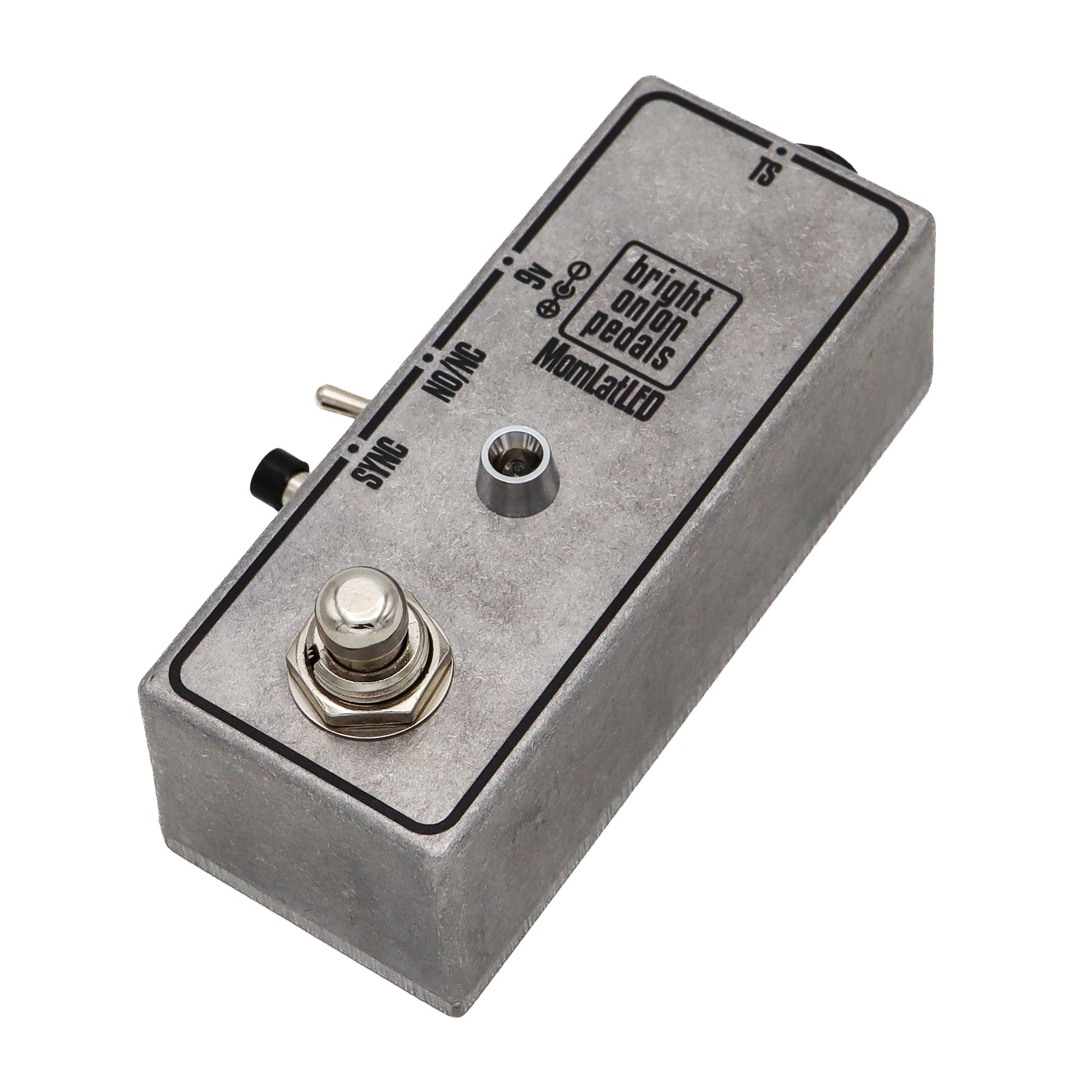

Mini Momentary Footswitch with Latching LED

This is a mini version of our popluar Momentary Footswitch with Latching LED, for when you need a momentary pedal but would like a latching LED to show if the effect you have toggled is on or off.

The pedal comes with a polarity toggle switch so you can select if the momentary switching is normally open or normally closed.

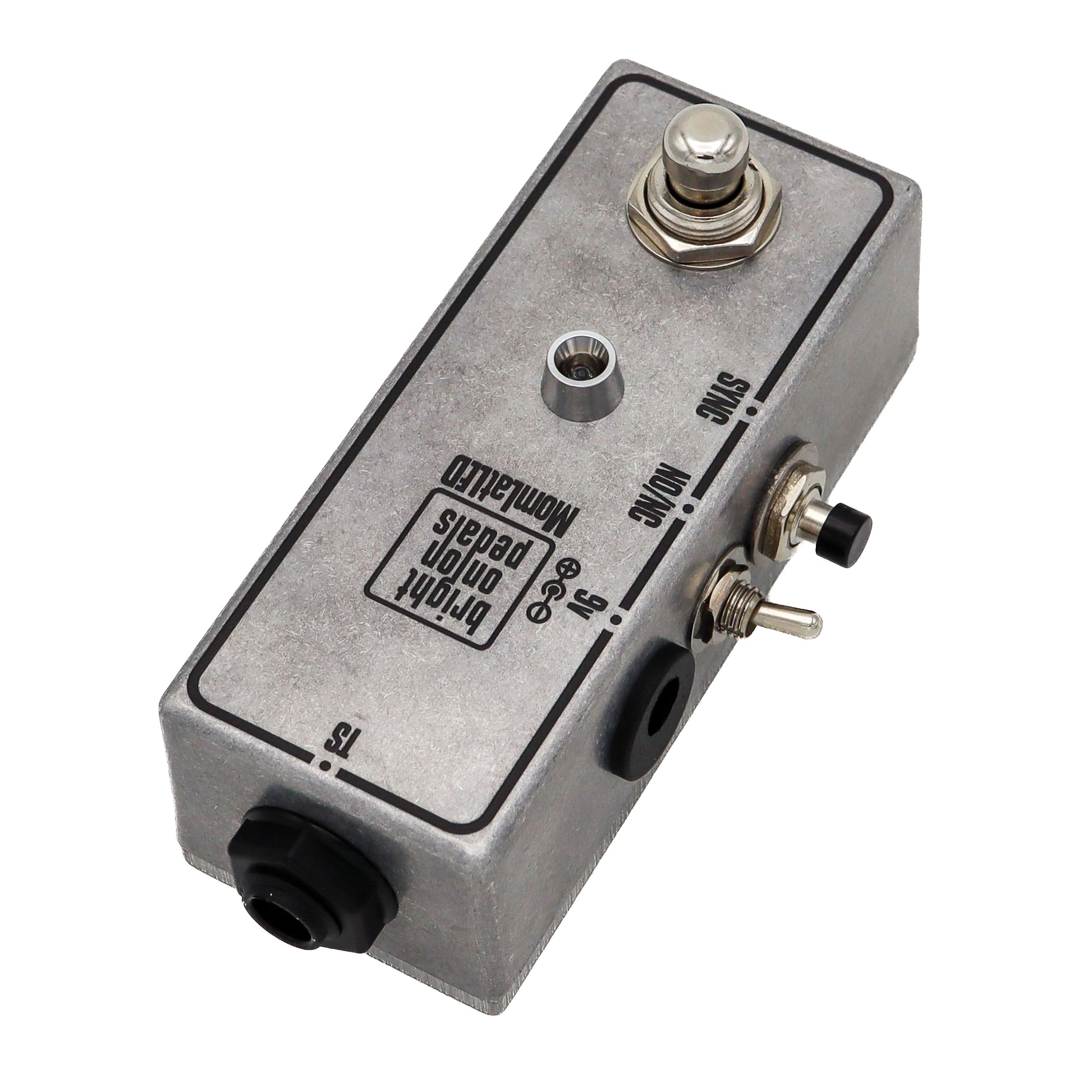

There is also a sync button on the side of the pedal which will switch the LED but not send a signal to the output socket, meaning that you can sync the LED state to the effect if it is out of sync.

The LED and the switching circuit requires power via the 2.1mm 9v DC socket.

Then just add a mono patch cable and you are ready to go.

The pedal is built with:

• Aluminium enclosure
• Neutrik plug socket
• Heavy duty soft touch footswitch
• LED
• 2.1mm centre negative 9v DC socket (20mA)


Enclosure dimensions:

110x60x31mm
