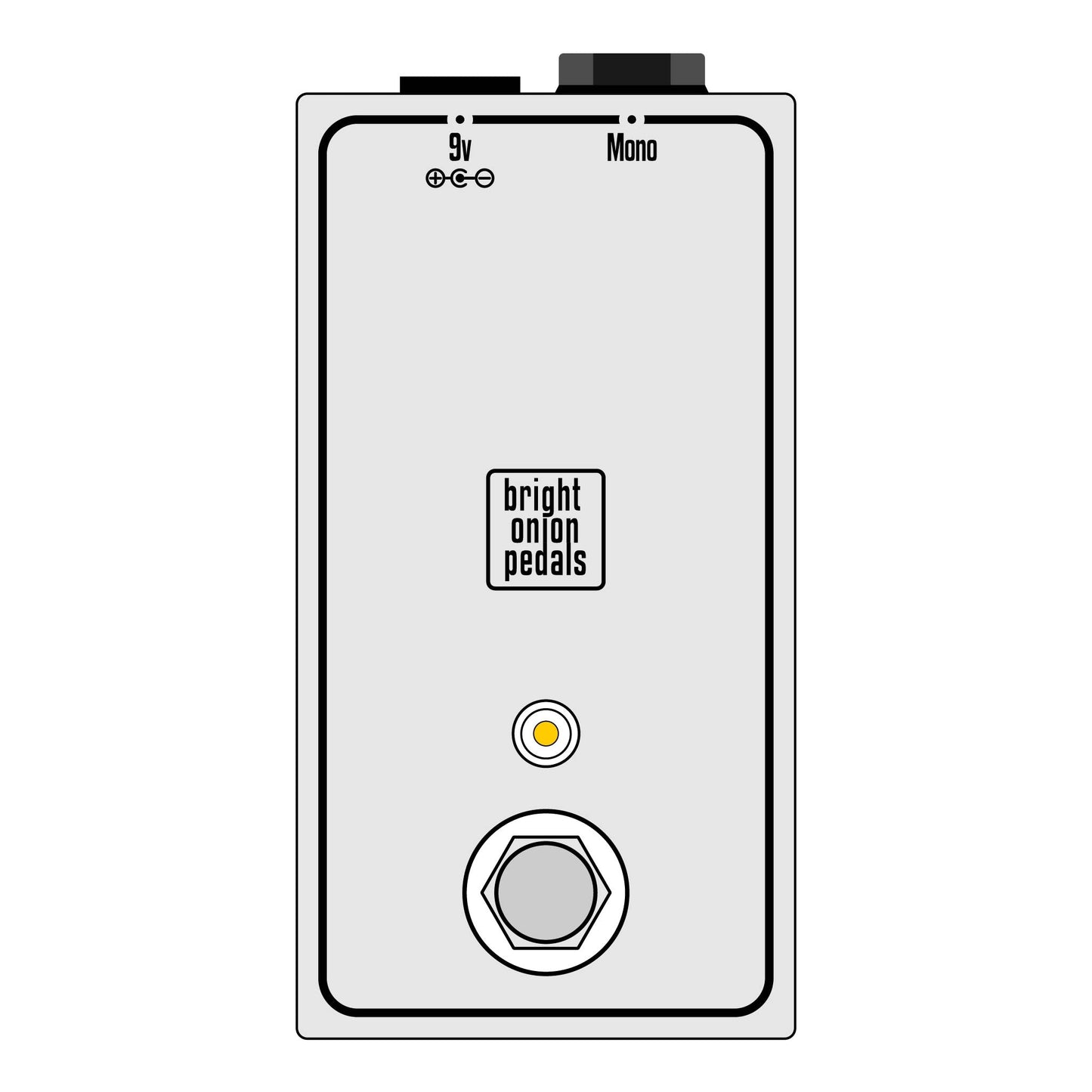

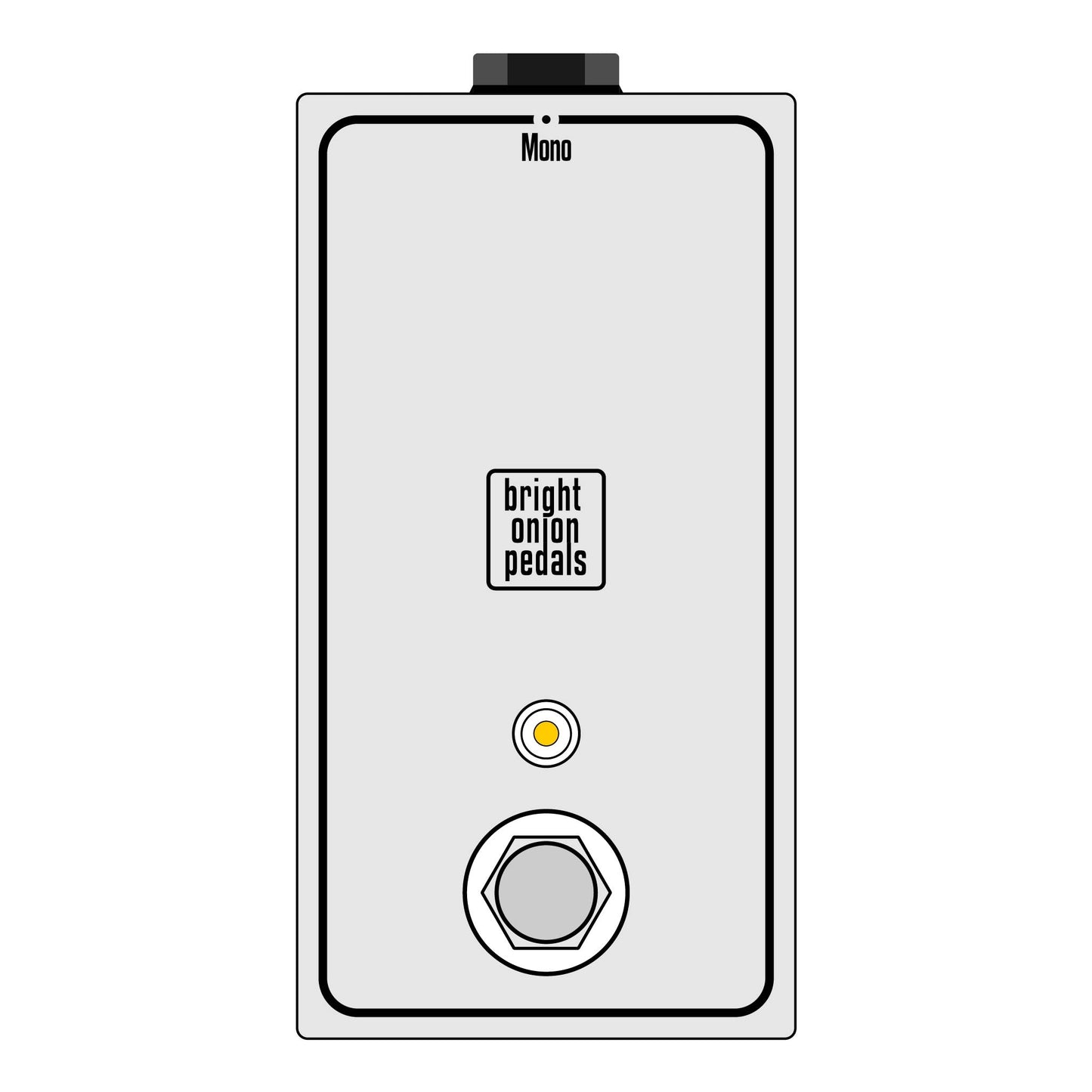

Momentary Footswitch with Latching LED

This useful pedal is for when you need a momentary pedal but would like a latching LED to show if the effect you have toggled is on or off.

The pedal comes with a polarity toggle switch so you can select if the momentary switching is normally open or normally closed.

There is also a sync button on the side of the pedal which will switch the LED but not send a signal to the output socket, meaning that you can sync the LED state to the effect if it is out of sync.

The LED and the switching circuit requires power via an internal 9v battery (not supplied) and/or 2.1mm 9v DC socket. Select your preferred option when ordering.

Then just add a mono patch cable and you are ready to go.

The pedal is built with:

• Aluminium enclosure
• Neutrik plug socket
• Heavy duty soft touch footswitch
• LED
• Battery clip and/or 2.1mm centre negative 9v DC socket (20mA)


Enclosure dimensions:

110x60x31mm
