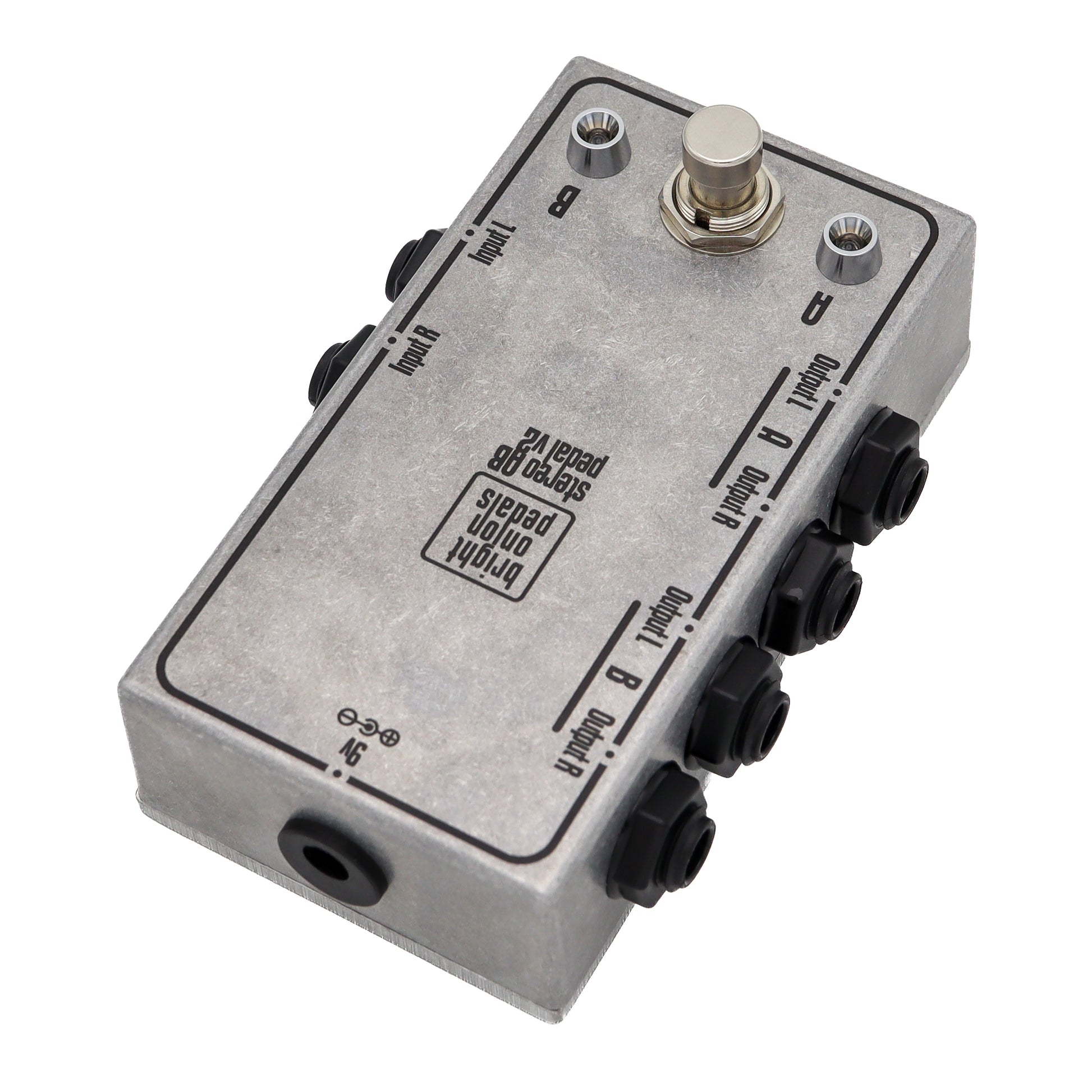

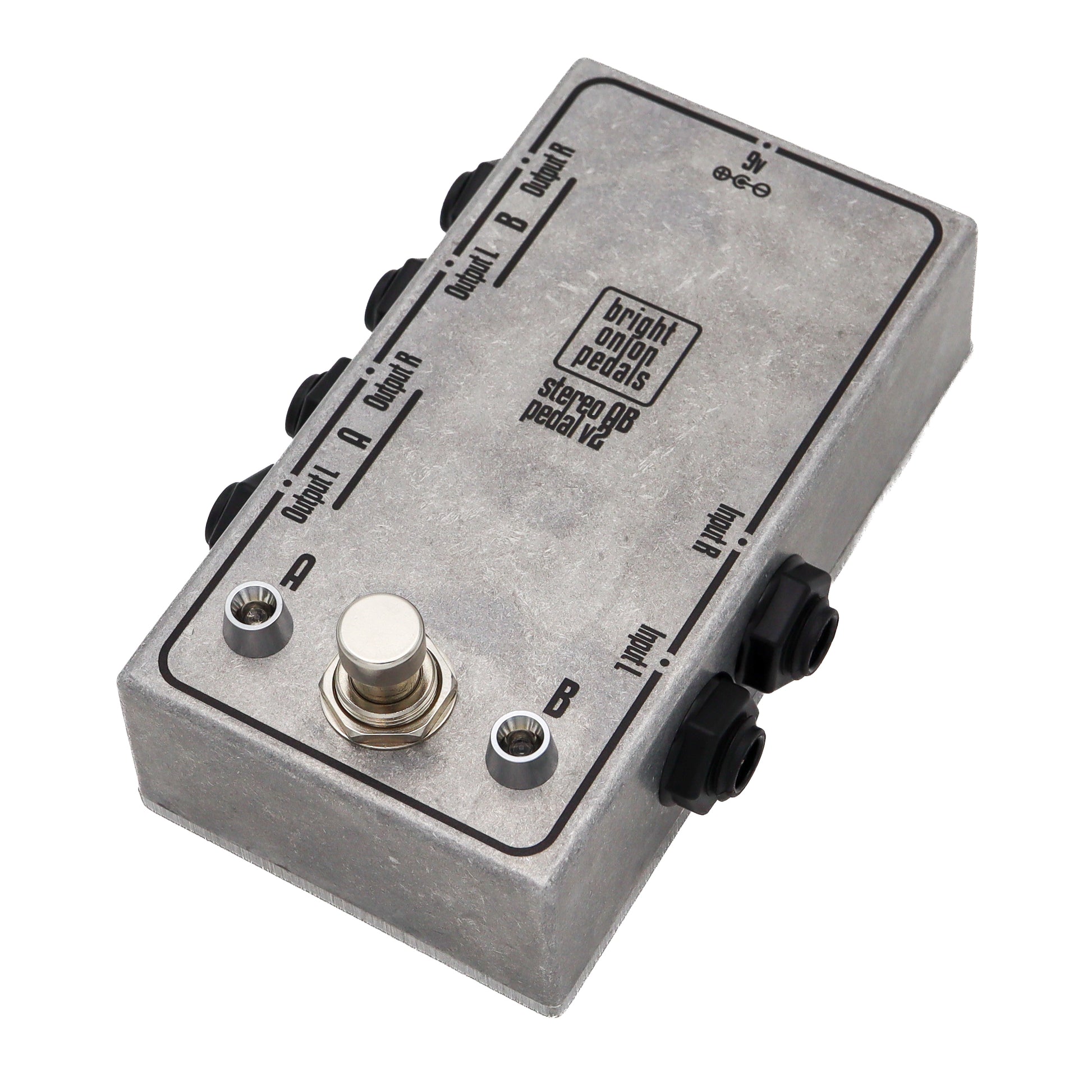

Stereo AB Output Switch v2

This is a stereo AB switch that enables you to select between two stereo outputs that are routed from a single stereo input.

This is version 2 of or original Stereo AB pedal with added status LEDs and the signal switching done via gold plated relays.

The pedal is built with:

• Aluminium enclosure
• Neutrik plug sockets
• Heavy duty footswitch
• 2.1mm centre negative 9v DC socket (60mA)

Enclosure dimensions:

110x60x31mm
