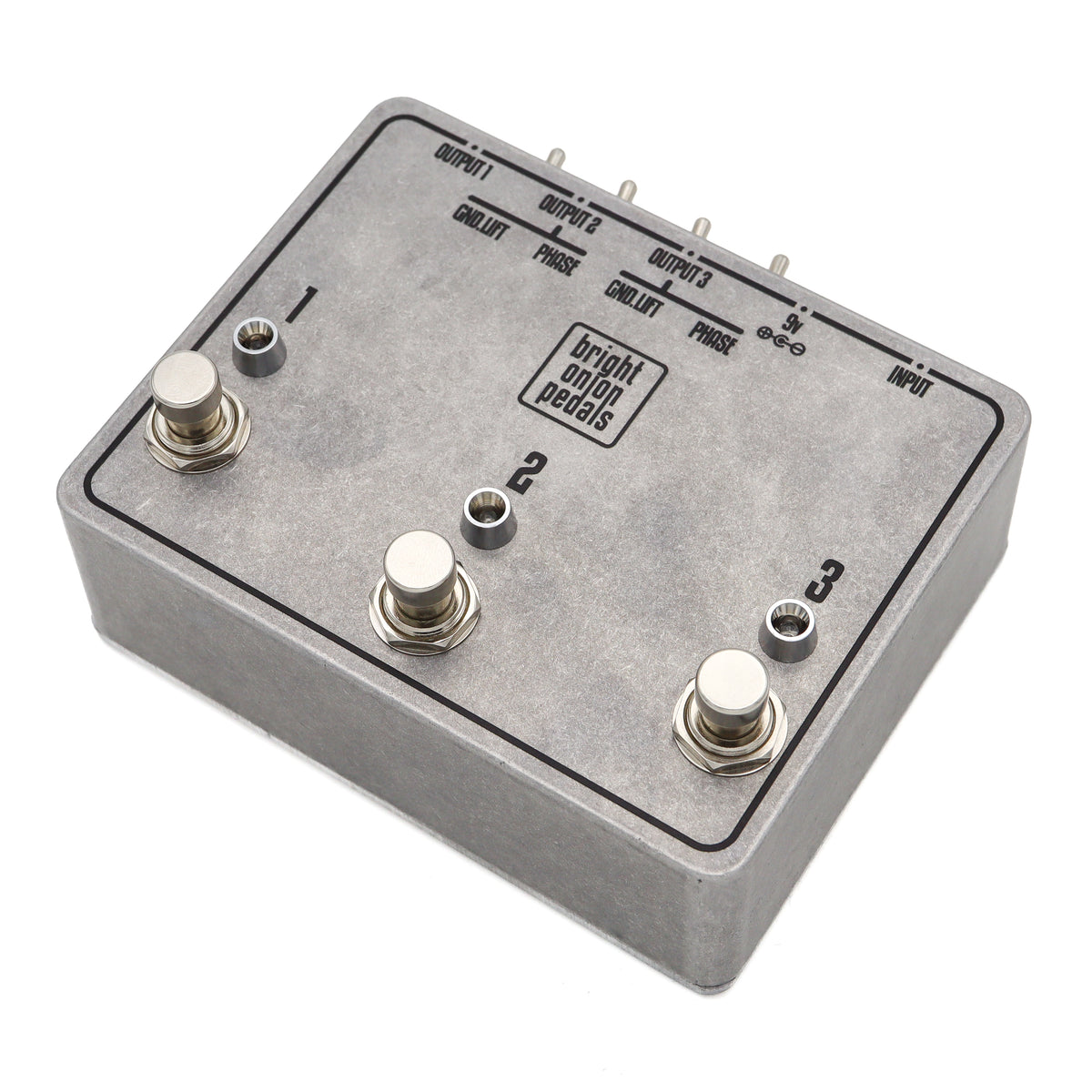

Three Way Splitter Pedal with Isolated Outputs

Three Way Splitter Pedal with Isolated Outputs

£104.95 GBP
£104.95 GBP
Sale Sold out

BUILD TIMES & SHIPPING

This three way splitter pedal which lets you send your input to any combination of the three outputs.

The pedal comes with the added benefits of being active and having the second and third outputs going via isolation transformers.

As the pedal has active buffers there will be no signal loss when the input signal is split to the outputs, and having the isolated outputs ensures there will be no ground hum issues.

There are also phase switches that reverses the phase of its output in case there are any phase issues when using multiple amps, plus ground lift switches are also included.

The pedal is built with:
  • Hammond aluminium enclosure
  • Neutrik plug sockets
  • 3PDT heavy duty footswitches
  • Status LEDs
  • 2.1mm centre negative 9v DC socket (20mA)
  • 1M input impedance and 1K output impedance

Enclosure dimensions:

120x94x42mm

View full details

GPSR Information

Name: Bright Onion Pedals Limited

Address: 86 Downs Valley Road, Brighton, BN2 6RF, UK

Email: james@brightonion.co.uk

Website: https://brightonion.co.uk/

European Manufacturer: Yes

Name: Easy Access System Europe

Address: Mustamäe tee 50, 10621 Tallinn, Estonia

Email: gpsr.requests@easproject.com

Website: easproject.com

Name: Bright Onion Pedals Limited

Address: 86 Downs Valley Road, Brighton, BN2 6RF, UK

Email: james@brightonion.co.uk

Website: https://brightonion.co.uk/

Age Restrictions: Not suitable for small children without adult supervision.

Warnings
  • If the pedal is powered, use only a 9v DC Centre Negative 2.1mm barrel power supply.
  • If the pedal has a transformer isolated output, only use it with equipment that is properly grounded with a 3-prong AC plug.
  • Do not expose to moisture, liquids, or excessive humidity.
  • Disconnect power when not in use for extended periods.
  • Do not use damaged power cables or adapters.
  • Use appropriate hearing protection when using with amplified equipment.
  • Keep away from heat sources and direct sunlight.
  • Do not drop or subject to impact.
  • Place on stable, flat surfaces only.
  • For indoor use only.
  • Do not use in wet locations or near water.
  • Clean only with dry cloth - do not use solvents or cleaning fluids.
  • No user maintenance required - refer servicing to Bright Onion Pedals Limited.
Disposal Instructions

Our products contain no batteries or lead. Return the product to Bright Onion Pedals Limited for disposal or use the standard disposal for electrical equipment recommended in your country.
