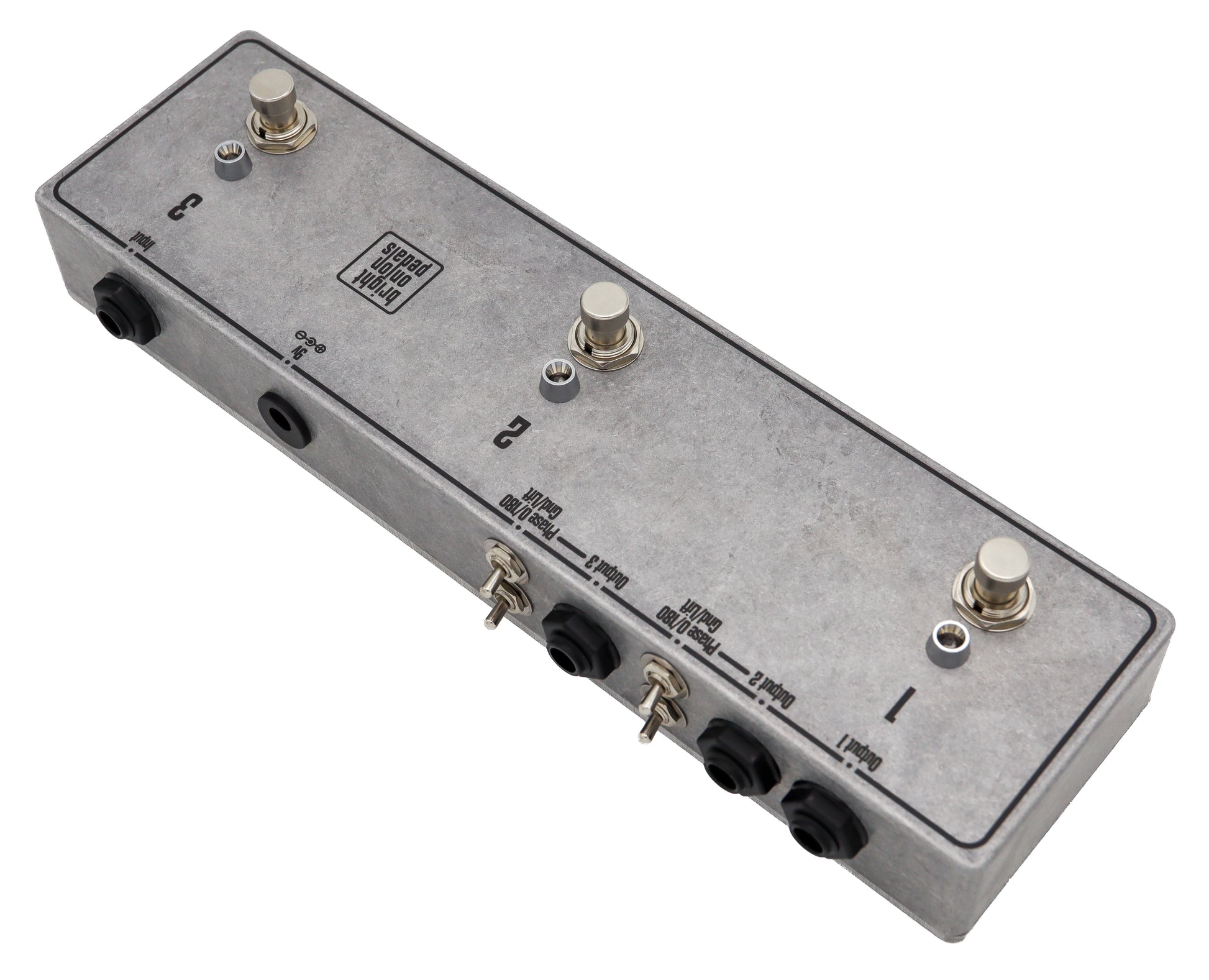

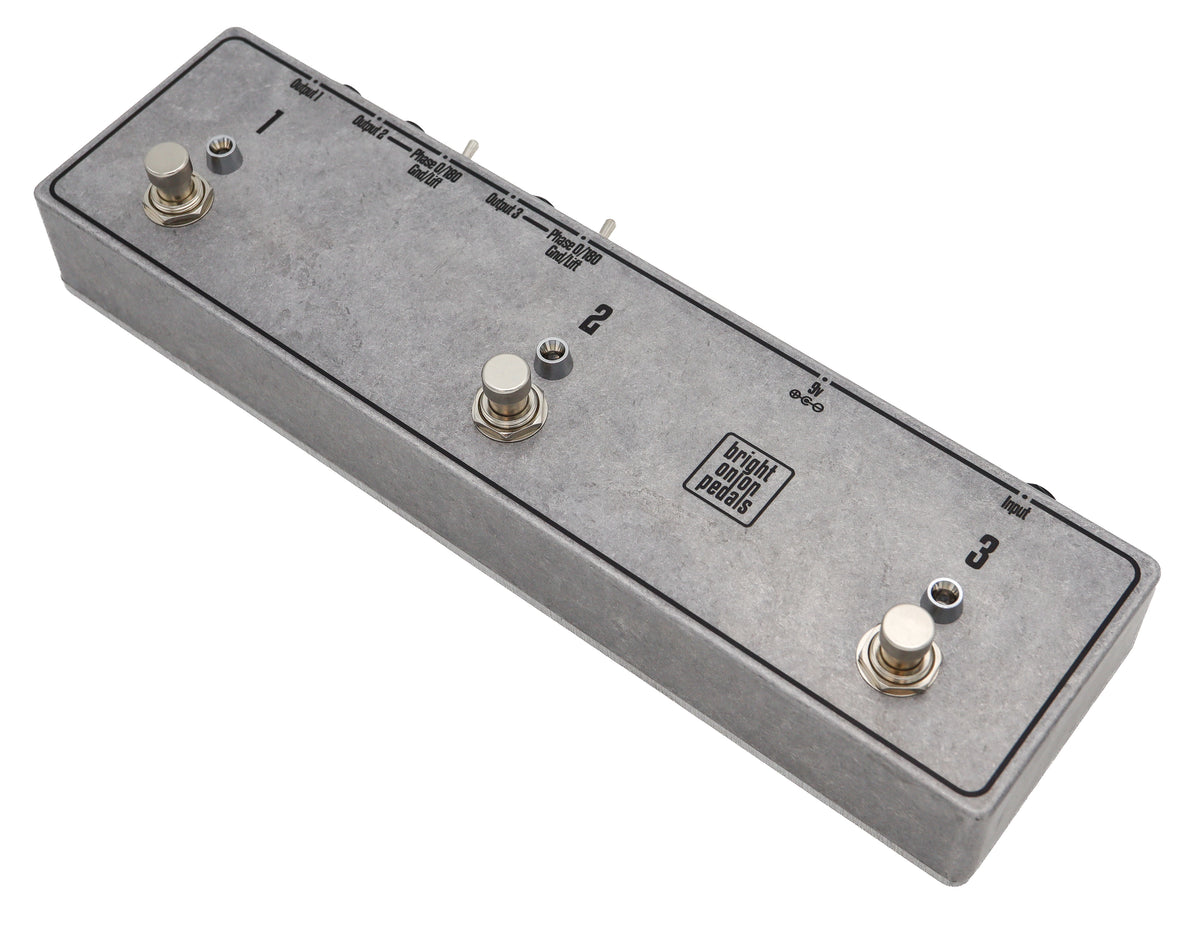

Three Way Splitter Pedal with Isolated Outputs v2

This three way splitter pedal which lets you send your input to any combination of the three outputs.

The pedal comes with the added benefits of being active and having the second and third outputs going via isolation transformers.

As the pedal has active buffers there will be no signal loss when the input signal is split to the outputs, and having the isolated outputs ensures there will be no ground hum issues.

There are also phase switches that reverses the phase of its output in case there are any phase issues when using multiple amps, plus ground lift switches are also included.

• Hammond aluminium enclosure
• Neutrik plug sockets
• 3PDT heavy duty footswitches
• Status LEDs
• 2.1mm centre negative 9v DC socket (20mA)
• 1M input impedance and 1K output impedance

Enclosure dimensions:

254x70x35mm
